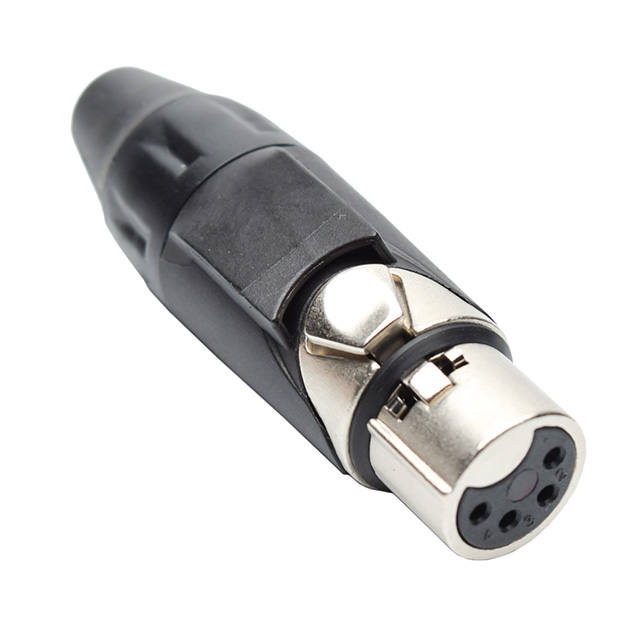

AX4F6M
ActiveAMPHENOL AUDIO
CONN PLUG FMALE XLR 4P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AX4F6M
ActiveAMPHENOL AUDIO
CONN PLUG FMALE XLR 4P SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AX4F6M |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Latch Lock |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | XLR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AX4F Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
