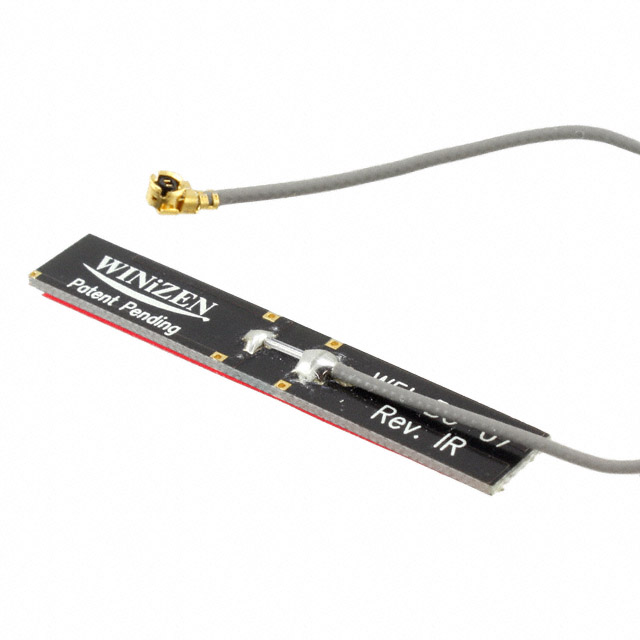

W5I-BO-07
ActiveWIZnet
ANTENNA PCB 2.5DBI GAIN 2483.5MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W5I-BO-07
ActiveWIZnet
ANTENNA PCB 2.5DBI GAIN 2483.5MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W5I-BO-07 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Features | 130 mm |
| Features | Cable |
| Frequency Range [Max] | 2.483 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.5 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -22.36 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | IPEX MHF1, U.FL (UMCC) |
| VSWR | 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
W5I-BO Series
2.4GHz Bluetooth, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.483GHz 2.5dBi U.FL (UMCC), IPEX MHF1 Adhesive
