0805CT-472EJFS

Obsolete

Delta Electronics/Components

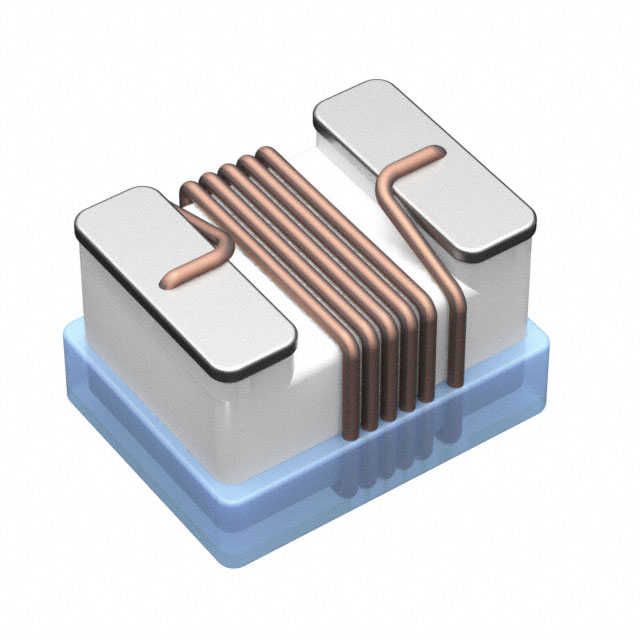

FIXED IND 4.7UH 400MA 1.9OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0805CT Datasheet

0805CT-472EJFS

Obsolete

Delta Electronics/Components

FIXED IND 4.7UH 400MA 1.9OHM SMD

Deep-Dive with AI

DocumentsDatasheet 0805CT Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0805CT-472EJFS

Current Rating (Amps)	400 mA
Frequency - Self Resonant	65 MHz
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Inductance	4.7 ÁH
Inductance Frequency - Test	7.96 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0805
Q @ Freq	15, 7.96 MHz
Shielding	Unshielded
Size / Dimension [x]	2.29 mm
Size / Dimension [x]	0.09 "
Size / Dimension [y]	0.068 in
Size / Dimension [y]	1.73 mm
Supplier Device Package	0805
Tolerance	5 %
Type	Wirewound, Drum Core

0805CT Series

Part	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Q @ Freq	Tolerance	Type	Frequency - Self Resonant	Package / Case	Inductance Frequency - Test	Supplier Device Package	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Material - Core	DC Resistance (DCR)
Delta Electronics/Components 0805CT-472EJFS	400 mA	0.039 "	1 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	7.96 MHz 15	5 %	Drum Core Wirewound	65 MHz	0805	7.96 MHz	0805	Unshielded	85 °C	-40 °C	4.7 ÁH	Ferrite
Delta Electronics/Components 0805CT-330EKTS	600 mA	0.041 in	1.03 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	50 500 MHz	10 %	Drum Core Wirewound	2.35 GHz	0805	250 MHz	0805	Unshielded	125 °C	-40 °C	33 nH	Ceramic	280 mOhm
Delta Electronics/Components 0805CT-6N8EKTS	800 mA	0.041 in	1.03 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	1 GHz 50	10 %	Drum Core Wirewound	5.5 GHz	0805	250 MHz	0805	Unshielded	125 °C	-40 °C	6.8 nH	Ceramic	80 mOhm
Delta Electronics/Components 0805CT-150EGTS	800 mA	0.041 in	1.03 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	50 500 MHz	2 %	Drum Core Wirewound	2.95 GHz	0805	250 MHz	0805	Unshielded	125 °C	-40 °C	15 nH	Ceramic	100 mOhm
Delta Electronics/Components 0805CT-330EGTS	600 mA	0.041 in	1.03 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	50 500 MHz	2 %	Drum Core Wirewound	2.35 GHz	0805	250 MHz	0805	Unshielded	125 °C	-40 °C	33 nH	Ceramic	280 mOhm
Delta Electronics/Components 0805CT-470EJTS	600 mA	0.041 in	1.03 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	50 500 MHz	5 %	Drum Core Wirewound	2 GHz	0805	200 MHz	0805	Unshielded	125 °C	-40 °C	47 nH	Ceramic	390 mOhm
Delta Electronics/Components 0805CT-472EKFS	400 mA	0.039 "	1 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	7.96 MHz 15	10 %	Drum Core Wirewound	65 MHz	0805	7.96 MHz	0805	Unshielded	85 °C	-40 °C	4.7 ÁH	Ferrite
Delta Electronics/Components 0805CT-682EJFS	400 mA	0.039 "	1 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	7.96 MHz 15	5 %	Drum Core Wirewound	41 MHz	0805	7.96 MHz	0805	Unshielded	85 °C	-40 °C	6.8 µH	Ferrite	2.4 Ohm
Delta Electronics/Components 0805CT-150EKTS	800 mA	0.041 in	1.03 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	50 500 MHz	10 %	Drum Core Wirewound	2.95 GHz	0805	250 MHz	0805	Unshielded	125 °C	-40 °C	15 nH	Ceramic	100 mOhm
Delta Electronics/Components 0805CT-151EGTS	300 mA	0.041 in	1.03 mm	0.068 in	1.73 mm	2.29 mm	0.09 "	Surface Mount	40 250 MHz	2 %	Drum Core Wirewound	1.05 GHz	0805	150 MHz	0805	Unshielded	125 °C	-40 °C	150 nH	Ceramic	800 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.27
		10	$ 0.21
		25	$ 0.17
		50	$ 0.15
		100	$ 0.14
		250	$ 0.11
		500	$ 0.10
		1000	$ 0.09
	Digi-Reel®	1	$ 0.27
		10	$ 0.21
		25	$ 0.17
		50	$ 0.15
		100	$ 0.14
		250	$ 0.11
		500	$ 0.10
		1000	$ 0.09
	Tape & Reel (TR)	2000	$ 0.09
		4000	$ 0.08
		6000	$ 0.08
		10000	$ 0.08
		14000	$ 0.08

Description

General part information

0805CT Series

4.7 µH Unshielded Drum Core, Wirewound Inductor 400 mA 1.9Ohm 0805 (2012 Metric)
