19370160528
ActiveHARTING Technology Group

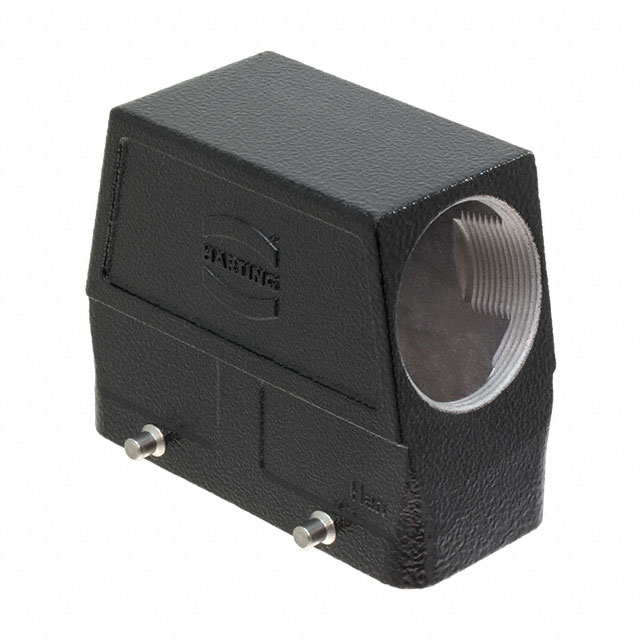

16B MARINE HOOD SIDE ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, M40
Deep-Dive with AI
Search across all available documentation for this part.
19370160528
ActiveHARTING Technology Group
16B MARINE HOOD SIDE ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, M40
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19370160528 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 B |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Style | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19370160 Series
Hood Connector Side Entry M40 16B IP65 - Dust Tight, Water Resistant
