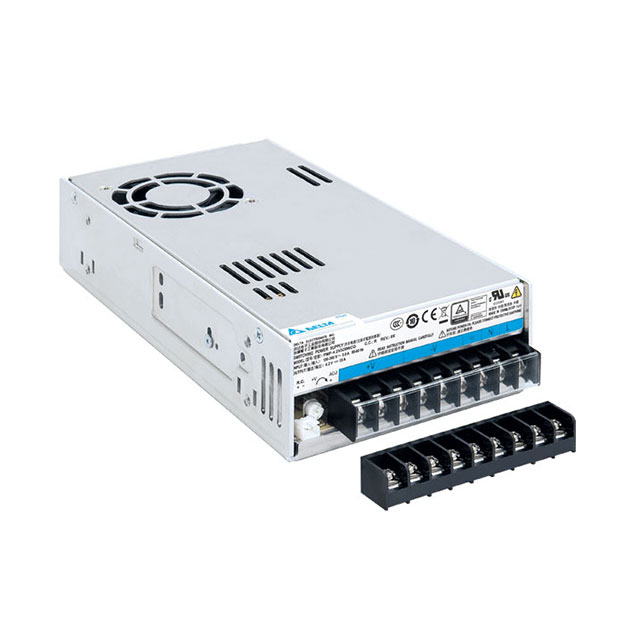

PMF-4V320WCGR

Active

Delta Electronics

AC/DC CONVERTER 4.2V 320W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 4.2V 320W

Technical Specifications

Parameters and characteristics for this part

Specification	PMF-4V320WCGR

Applications	ITE (Commercial)
Approval Agency	CCC, CE, cURus, TUVgs, CB
Current - Output 1	55 A
Efficiency	76.5 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	320 W
Size / Dimension [x]	8.46 "
Size / Dimension [x]	215 mm
Size / Dimension [y]	115 mm
Size / Dimension [y]	4.53 "
Size / Dimension [z]	50 mm
Size / Dimension [z]	1.97 "
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	4.2 V

Part	Power (Watts)	Applications	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Approval Agency	Voltage - Output 1	Mounting Type	Type	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Features
Delta Electronics PMF-4V320WCGR	320 W	ITE (Commercial)	55 A	8.46 "	50 mm	1.97 "	215 mm	115 mm	4.53 "	76.5 %	CB CCC CE cURus TUVgs	4.2 V	Chassis Mount	Enclosed	1	3000 V	-10 °C	70 °C	Adjustable Output PFC Remote On/Off Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 83.34

General part information

Enclosed AC DC Converters 1 Output 4.2V 85 ~ 264 VAC Input
