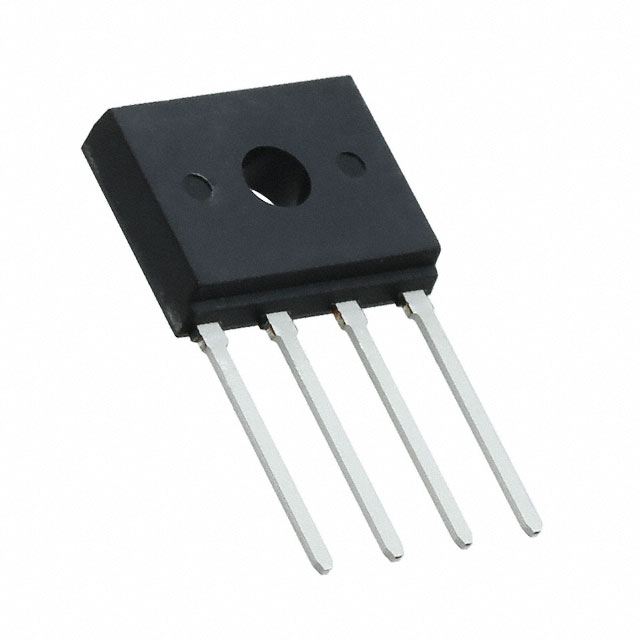

UG6KB60
ActiveSMC Diode Solutions
BRIDGE RECT 1PHASE 600V 6A D3K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UG6KB60
ActiveSMC Diode Solutions
BRIDGE RECT 1PHASE 600V 6A D3K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UG6KB60 |
|---|---|
| Current - Average Rectified (Io) | 6 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-ESIP |
| Supplier Device Package | D3K |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.64 | |
| 37 | $ 0.51 | |||
| 111 | $ 0.38 | |||
| 518 | $ 0.30 | |||
| 1036 | $ 0.24 | |||
| 2035 | $ 0.22 | |||
| 5032 | $ 0.20 | |||
| 10027 | $ 0.19 | |||
| 50024 | $ 0.18 | |||
Description
General part information
UG6KB60 Series
Bridge Rectifier Single Phase Standard 600 V Through Hole D3K
