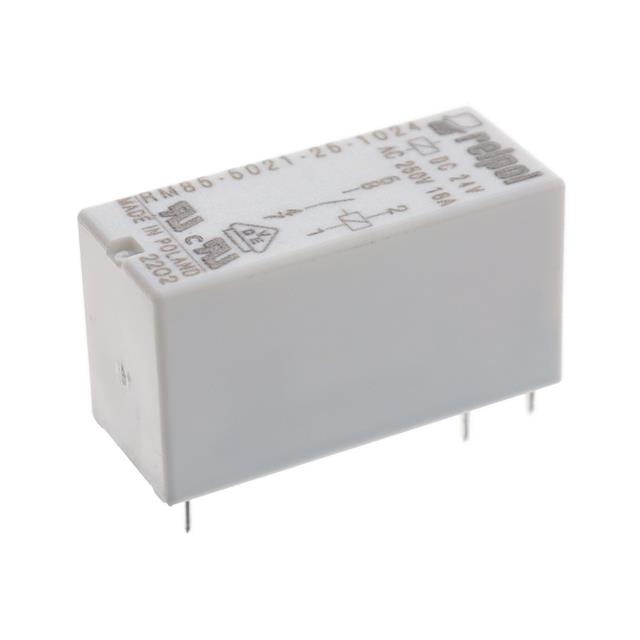

RM85-5021-25-1024

Active

Altech Corporation

RELAY GEN PURPOSE SPST 16A 24V

Deep-Dive with AI

Search across all available documentation for this part.

RM85-5021-25-1024

Active

Altech Corporation

RELAY GEN PURPOSE SPST 16A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM85-5021-25-1024

Approval Agency	VDE, CSA, CCC, UR, CE
Coil Current	16.7 mA
Coil Resistance	1440 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Load - Max Switching	7040 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Operate Time	7 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	440 VAC
Termination Style	PC Pin

RM85-5021 Series

Part	Coil Voltage	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Coil Resistance	Operate Time	Contact Material	Release Time	Coil Current	Contact Form	Approval Agency	Switching Voltage	Must Operate Voltage	Coil Type	Seal Rating	Contact Rating (Current)	Load - Max Switching
TE Connectivity Raychem Cable Protection RM85-5021-25-1005	5 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	60 Ohms	7 ms	Silver Nickel (AgNi)	3 ms	83.3 mA	SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	3.5 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA
Altech Corporation RM85-5021-25-1005	5 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	60 Ohms	7 ms	Silver Nickel (AgNi)	3 ms	83.3 mA	SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	3.5 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA
Altech Corporation RM85-5021-25-1060	60 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	7500 Ohms	7 ms	Silver Nickel (AgNi)	3 ms		SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	42 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA
TE Connectivity Raychem Cable Protection RM85-5021-25-1009	9 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	200 Ohms	7 ms	Silver Nickel (AgNi)	3 ms	45 mA	SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	6.3 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA
Altech Corporation RM85-5021-25-1009	9 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	200 Ohms	7 ms	Silver Nickel (AgNi)	3 ms	45 mA	SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	6.3 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA
Altech Corporation RM85-5021-25-1048	48 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	5.7 kOhms	7 ms	Silver Nickel (AgNi)	3 ms	8.4 mA	SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	33.6 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA
Altech Corporation RM85-5021-25-1024	24 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	1440 Ohms	7 ms	Silver Nickel (AgNi)	3 ms	16.7 mA	SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	16.8 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA
Altech Corporation RM85-5021-25-1110	110 VDC	General Purpose	85 °C	-40 °C	Through Hole	PC Pin	25.2 kOhms	7 ms	Silver Nickel (AgNi)	3 ms	4.4 mA	SPST-NO (1 Form A)	CCC CE CSA UR VDE	440 VAC	77 VDC	Non Latching	Sealed - Flux Protection	16 A	7040 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.85
		20	$ 7.36
		40	$ 6.22
		100	$ 5.89
		260	$ 5.24
		500	$ 4.91
		1000	$ 4.58

Description

General part information

RM85-5021 Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
