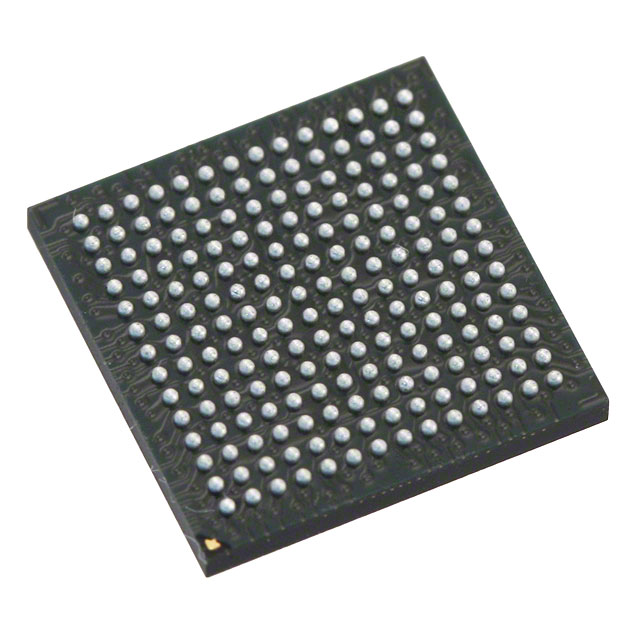

XC7S6-2CPGA196I

Active

AMD

IC FPGA 100 I/O 196CSBGA

Search across all available documentation for this part.

Active

AMD

IC FPGA 100 I/O 196CSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XC7S6-2CPGA196I

Mounting Type	Surface Mount
Number of I/O	100 I/O
Number of Logic Elements/Cells	6000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	CSBGA, 196-TFBGA
Supplier Device Package	196-CSPBGA (8x8)
Total RAM Bits	184320
Voltage - Supply [Max]	1.05 V
Voltage - Supply [Min]	0.95 V

Part	Number of I/O	Supplier Device Package	Supplier Device Package [custom]	Mounting Type	Number of Logic Elements/Cells	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Total RAM Bits	Voltage - Supply [Max]	Voltage - Supply [Min]
AMD XC7S6-1FTGB196I	100 I/O	196-CSBGA	15x15	Surface Mount	6000	100 °C	-40 C	196-LBGA CSPBGA	184320	1.05 V	0.95 V
AMD XC7S6-2CSGA225I	100 I/O	225-CSPBGA (13x13)		Surface Mount	6000	100 °C	-40 C	225-LFBGA CSPBGA	184320	1.05 V	0.95 V
AMD XC7S6-1CPGA196C	100 I/O	196-CSPBGA (8x8)		Surface Mount	6000	85 °C	0 °C	196-TFBGA CSBGA	184320	1.05 V	0.95 V
AMD XC7S6-2FTGB196C	100 I/O	196-CSBGA	15x15	Surface Mount	6000	85 °C	0 °C	196-LBGA CSPBGA	184320	1.05 V	0.95 V
AMD XC7S6-2CPGA196I	100 I/O	196-CSPBGA (8x8)		Surface Mount	6000	100 °C	-40 C	196-TFBGA CSBGA	184320	1.05 V	0.95 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 24.08

General part information

Spartan®-7 Field Programmable Gate Array (FPGA) IC 100 184320 6000 196-TFBGA, CSBGA
