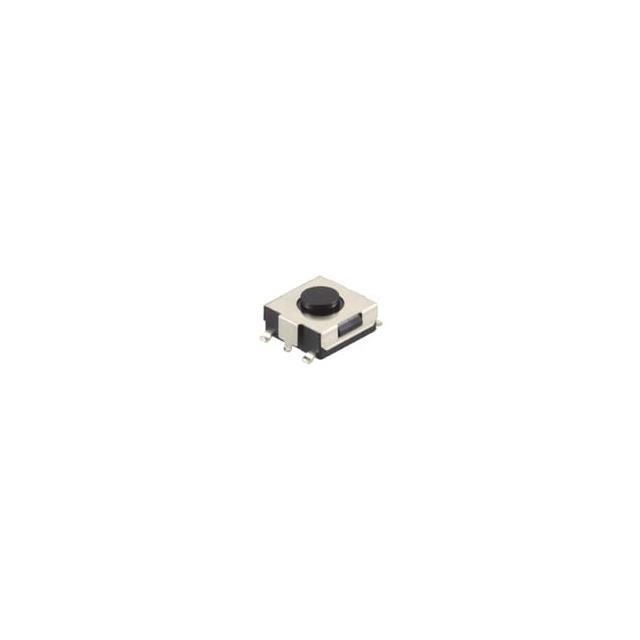

SKHMQKE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKHMQKE010

Actuator Height off PCB, Vertical [z]	3.1 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.5 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Actuator Type	Actuator Height off PCB, Vertical [z]	Mounting Type	Switch Travel	Outline [x]	Outline [y]	Circuit	Illumination	Switch Function	Actuator Orientation	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Contact Rating @ Voltage	Operating Force
Alps Alpine SKHMQLE010	Standard	3.1 mm	Surface Mount	0.25 mm	6.5 mm	6.2 mm	SPST-NO	Non-Illuminated	Off-Mom	Top Actuated	Gull Wing	85 °C	-40 °C	300000 Cycles	0.05 A 12 VDC
Alps Alpine SKHMQKE010	Standard	3.1 mm	Surface Mount	0.25 mm	6.5 mm	6.2 mm	SPST-NO	Non-Illuminated	Off-Mom	Top Actuated	Gull Wing	85 °C	-40 °C	500000 Cycles	0.05 A 12 VDC	100 gf
Alps Alpine SKHMQME010	Standard	3.1 mm	Surface Mount	0.25 mm	6.5 mm	6.2 mm	SPST-NO	Non-Illuminated	Off-Mom	Top Actuated	Gull Wing	85 °C	-40 °C	200000 Cycles	0.05 A 12 VDC	240 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
