LE T H3W-MANA-25

Obsolete

ams-OSRAM USA INC.

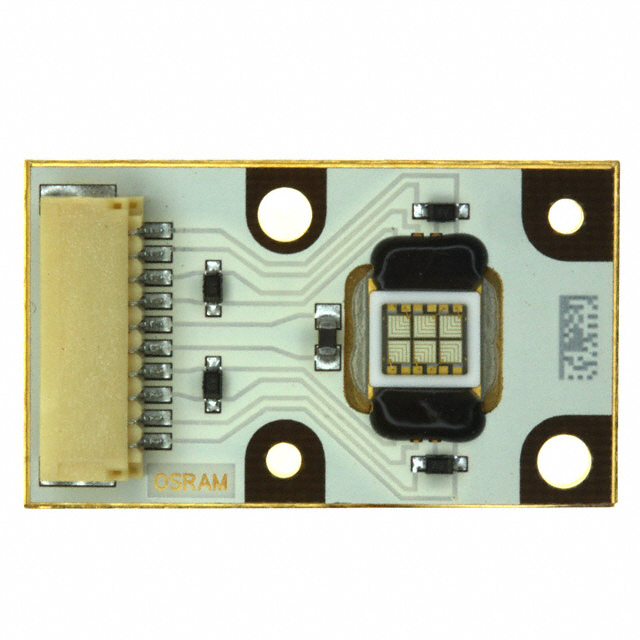

LED MOD OSTAR GREEN RECT

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED MOD OSTAR GREEN RECT

Technical Specifications

Parameters and characteristics for this part

Specification	LE T H3W-MANA-25

Color	Green
Configuration	Rectangle
Current - Max [Max]	1 A
Current - Test	1 A
Features	With Connector
Height [z]	4.56 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	2.03 mm
Light Emitting Surface (LES) [y]	3.13 mm
Luminous Flux @ Current/Temperature	775 lm
Luminous Flux @ Current/Temperature [Max]	950 lm
Luminous Flux @ Current/Temperature [Min]	600 lm
Size / Dimension [x]	25.5 mm
Size / Dimension [y]	15 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.8 V
Wavelength	520 nm

Part	Type	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Voltage - Forward (Vf) (Typ)	Features	Color	Current - Test	Configuration	Wavelength	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Viewing Angle	Height [z]	Lens Type	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]
ams-OSRAM USA INC. LE T H3W-MANA-25	LED Module	3.13 mm	2.03 mm	3.8 V	With Connector	Green	1 A	Rectangle	520 nm	15 mm	25.5 mm	1 A	120 °	4.56 mm	Flat	600 lm	775 lm	950 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Ostar Green Rectangle
