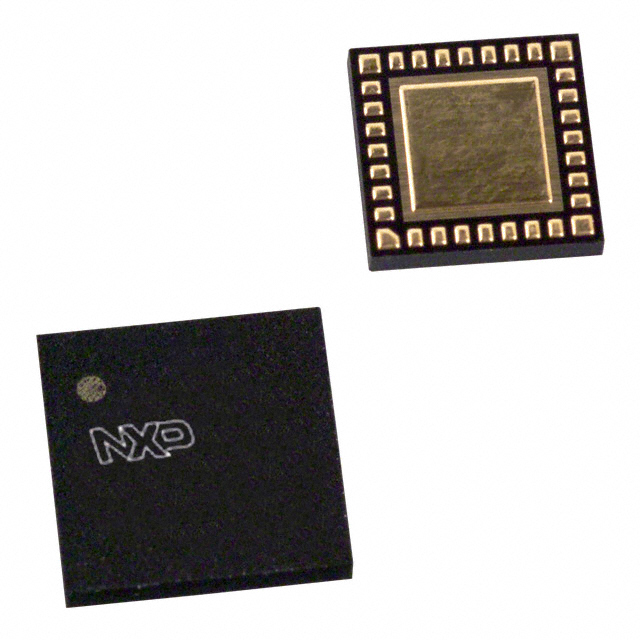

TZA3011BVH/C2,557

Obsolete

Freescale Semiconductor - NXP

IC LASER DRVR 3.2GB 3.47V 32HBCC

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC LASER DRVR 3.2GB 3.47V 32HBCC

Technical Specifications

Parameters and characteristics for this part

Specification	TZA3011BVH/C2,557

Current - Bias	100 mA
Current - Modulation	100 mA
Current - Supply	40 mA
Data Rate	3.2 Gbps
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Supplier Device Package	32-HBCC (5x5)
Type	Laser Diode Driver (Fiber Optic)
Voltage - Supply [Max]	3.47 V
Voltage - Supply [Min]	3.14 V

Part	Mounting Type	Number of Channels	Current - Modulation	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Bias	Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Current - Supply	Supplier Device Package
Freescale Semiconductor - NXP TZA3011BVH/C2,557	Surface Mount	1	100 mA	3.47 V	3.14 V	100 mA	Laser Diode Driver (Fiber Optic)	85 °C	-40 °C	3.2 Gbps	40 mA	32-HBCC (5x5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Laser Driver IC 3.2Gbps 1 Channel 3.14V ~ 3.47V 32-HBCC (5x5)
