Technical Specifications
Parameters and characteristics for this part
| Specification | 0242.100UR |
|---|---|
| Applications | Hazardous Locations |
| Breaking Capacity @ Rated Voltage | 4 kA |
| Current Rating (Amps) | 100 mA |
| DC Cold Resistance | 3.6 Ohms |
| Features | Intrinsically Safe |
| Fuse Type | Cartridge |
| Melting I²t | 0.000977 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 3.02 mm |
| Size / Dimension [diameter] | 0.119 " |
| Size / Dimension [x] | 0.331 in |
| Size / Dimension [x] | 8.4 mm |
| Voltage Rating - AC | 250 VAC |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.67 | |
| 5 | $ 4.70 | |||
| 10 | $ 4.34 | |||
| 50 | $ 3.60 | |||
| 100 | $ 3.32 | |||
| 250 | $ 2.98 | |||
| Digi-Reel® | 1 | $ 5.67 | ||
| 5 | $ 4.70 | |||
| 10 | $ 4.34 | |||
| 50 | $ 3.60 | |||
| 100 | $ 3.32 | |||
| 250 | $ 2.98 | |||
| Tape & Reel (TR) | 500 | $ 2.75 | ||
| 1000 | $ 2.61 | |||
| 1500 | $ 2.61 | |||
Description
General part information

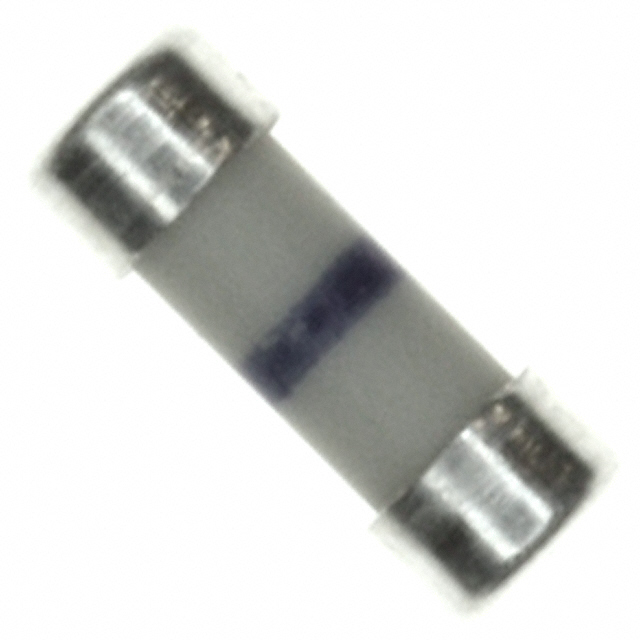

0242.100UR Series
FUSE 250V BARRIER FUSE SMT .100A
Documents
Technical documentation and resources
