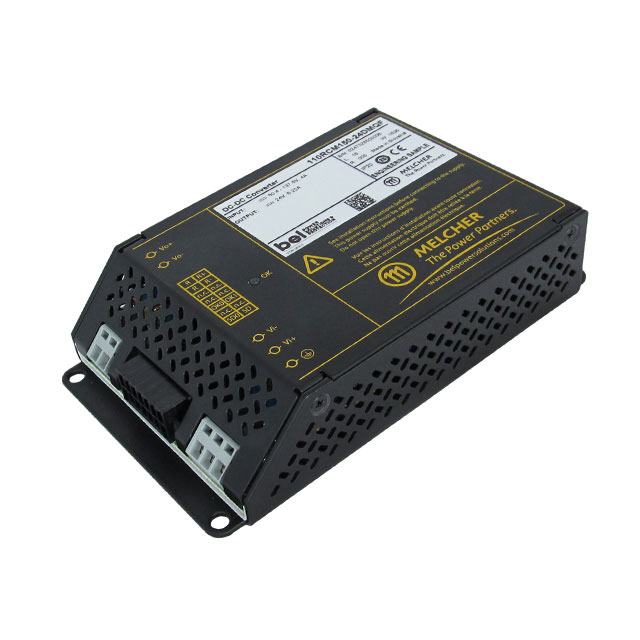

110RCM150-24DMQF
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 24V 150W
Deep-Dive with AI
Search across all available documentation for this part.
110RCM150-24DMQF
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 24V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 110RCM150-24DMQF |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 6.25 A |
| Efficiency | 93 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 6.48 " |
| Size / Dimension [x] | 164.6 mm |
| Size / Dimension [y] | 96 mm |
| Size / Dimension [y] | 3.78 in |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36.1 mm |
| Type | Conformal Coated, Enclosed |
| Voltage - Input (Max) [Max] | 137.5 V |
| Voltage - Input (Min) [Min] | 50.4 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 24 V |
110RCM150 Series
| Part | Current - Output (Max) [Max] | Approval Agency | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Mounting Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EOS Power India Private Ltd | 6.25 A | CE | 4.2 kV | 50.4 V | 24 V | 1.42 in | 6.48 " | 36.1 mm | 96 mm | 164.6 mm | 3.78 in | 93 % | Chassis Mount | Conformal Coated Enclosed | -40 °C | 70 °C | ITE (Commercial) Railway | 137.5 V | 1 | 150 W |
EOS Power India Private Ltd | 6.25 A | CE | 4.2 kV | 50.4 V | 24 V | 1.42 in | 6.48 " | 36.1 mm | 96 mm | 164.6 mm | 3.78 in | 93 % | Chassis Mount | Conformal Coated Enclosed | -40 °C | 70 °C | ITE (Commercial) Railway | 137.5 V | 1 | 150 W |
EOS Power India Private Ltd | 6.25 A | CE | 4.2 kV | 50.4 V | 24 V | 1.42 in | 6.48 " | 36.1 mm | 96 mm | 164.6 mm | 3.78 in | 93 % | Chassis Mount | Conformal Coated Enclosed | -40 °C | 70 °C | ITE (Commercial) Railway | 137.5 V | 1 | 150 W |
EOS Power India Private Ltd | 12.5 A | CE | 4.2 kV | 50.4 V | 12 V | 1.42 in | 6.48 " | 36.1 mm | 96 mm | 164.6 mm | 3.78 in | 92.5 % | Chassis Mount | Conformal Coated Enclosed | -40 °C | 70 °C | ITE (Commercial) Railway | 137.5 V | 1 | 150 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
110RCM150 Series
Enclosed, Conformal Coated DC DC Converter 1 Output 24V 6.25A 137.5V Input
Documents
Technical documentation and resources
No documents available
