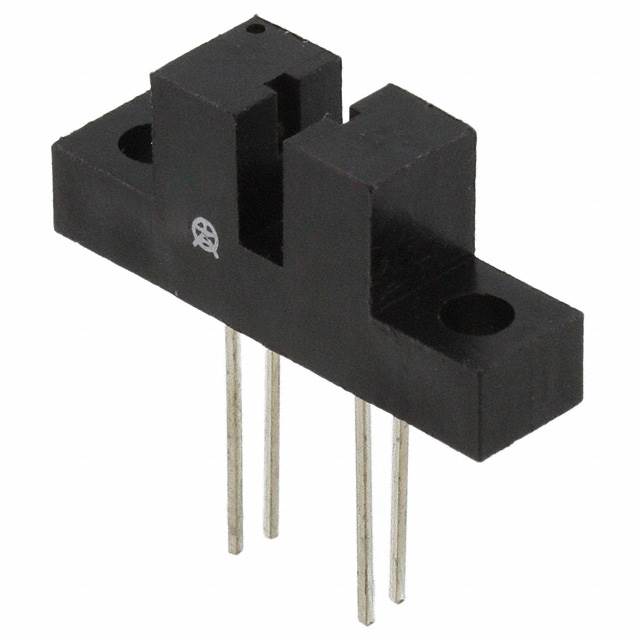

OPB854A3

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB854A3

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Sensing Distance	0.1 "
Sensing Distance	2.54 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Mounting Type	Output Configuration	Current - DC Forward (If) (Max)	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Sensing Method	Voltage - Collector Emitter Breakdown (Max) [Max]
TT Electronics/Optek Technology OPB854A3	Through Hole	Phototransistor	50 mA	0.1 "	2.54 mm	85 °C	-40 °C	Unamplified	PCB Mount	30 mA	Through-Beam	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.100" (2.54mm) Phototransistor PCB Mount

Technical documentation and resources

No documents available
