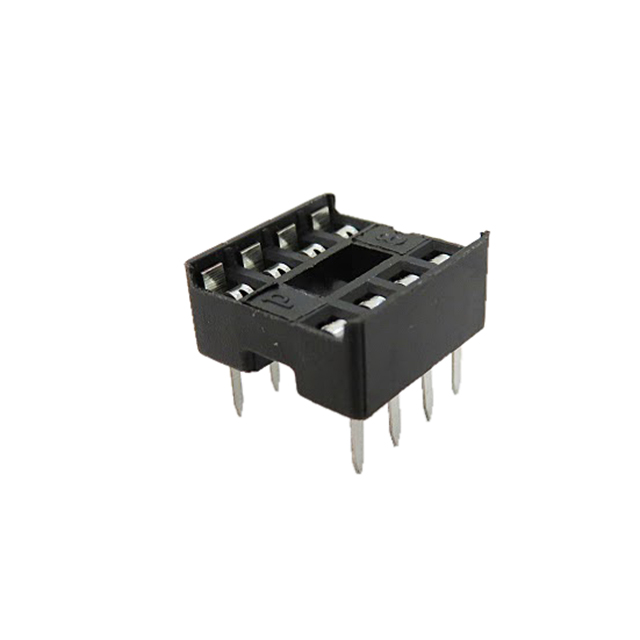

ICS-308-T

Active

Adam Tech

IC SOCKET, DIP, 8P 2.54MM PITCH

Search across all available documentation for this part.

Active

Adam Tech

IC SOCKET, DIP, 8P 2.54MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	ICS-308-T

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	20 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Material Flammability Rating	Contact Material - Post	Number of Positions or Pins (Grid)	Features	Type	Type	Type	Contact Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Termination Post Length	Termination Post Length	Contact Material - Mating	Mounting Type	Pitch - Post	Pitch - Post	Housing Material	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Current Rating (Amps)
Adam Tech ICS-318-T	UL94 V-0	Phosphor Bronze	18	Open Frame	0.3 "	7.62 mm	DIP	20 mOhm	105 ░C	-55 °C	3.15 mm	0.124 in	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	Solder	Tin	1 A
Adam Tech ICS-316-T	UL94 V-0	Phosphor Bronze	16	Open Frame	0.3 "	7.62 mm	DIP	20 mOhm	105 ░C	-55 °C	3.15 mm	0.124 in	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	Solder	Tin	1 A
Adam Tech ICS-308-T	UL94 V-0	Phosphor Bronze	8	Open Frame	0.3 "	7.62 mm	DIP	20 mOhm	105 ░C	-55 °C	3.15 mm	0.124 in	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	Solder	Tin	1 A
