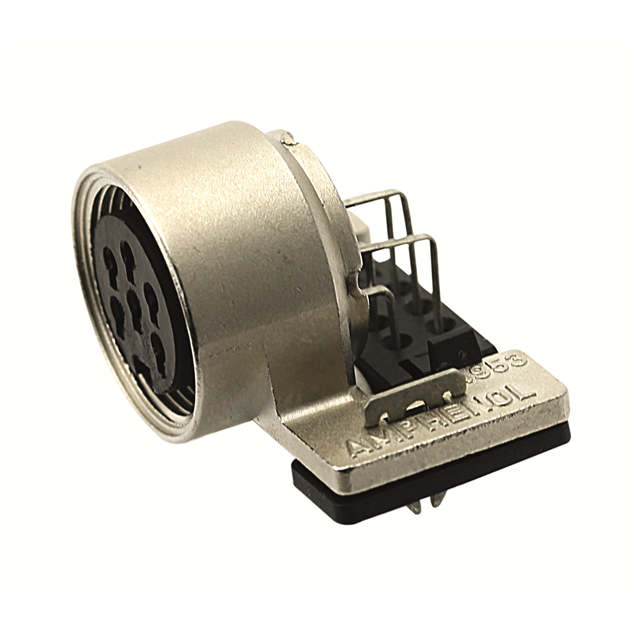

T 3403 218

Active

Amphenol Sine Systems Corp

PCB FLANGE MOUNTING FEMALE RECEP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PCB FLANGE MOUNTING FEMALE RECEP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3403 218

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-6
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

Part	Applications	Current Rating (Amps)	Shell Size - Insert	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Primary Material	Connector Type	Shell Material	Insert Material	Voltage Rating	Shielding	Number of Positions	Contact Finish - Mating	Ingress Protection	Mounting Feature	Orientation	Color	Shell Finish
Amphenol Sine Systems Corp T 3403 218	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	7 A	M16-6	Panel Mount Right Angle Through Hole	100 °C	-40 °C	UL94 V-0	Solder	Metal	Receptacle Female Sockets	Zinc Die Cast	Thermoplastic	250 VDC	Shielded	6	Gold	IP40	Flange	Keyed	Silver	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
