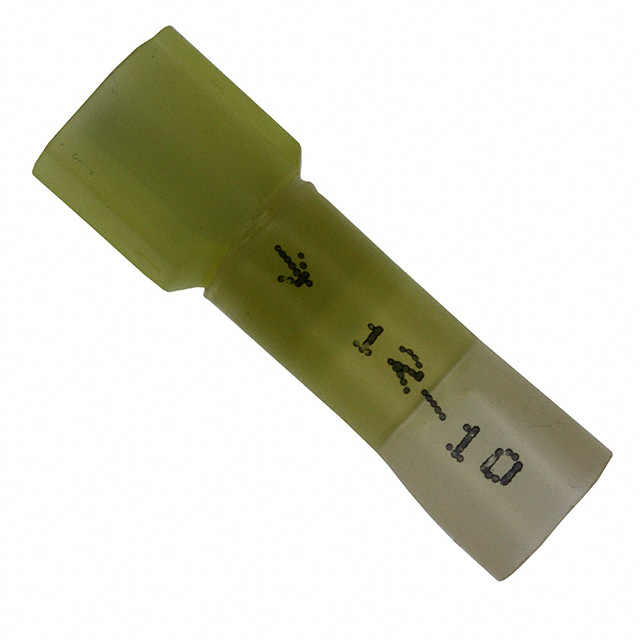

MNHU10-250DMIK
Active3M (TC)
FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MNHU10-250DMIK
Active3M (TC)
FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MNHU10-250DMIK |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Butted Seam |
| Gender | Male |
| Insulation | Fully Insulated Heat Shrink |
| Length - Overall [x] | 30.48 mm |
| Length - Overall [x] | 1.2 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MNHU10 Series
0.250" (6.35mm) Quick Connect Male 10-12 AWG Crimp Connector Fully Insulated Heat Shrink
