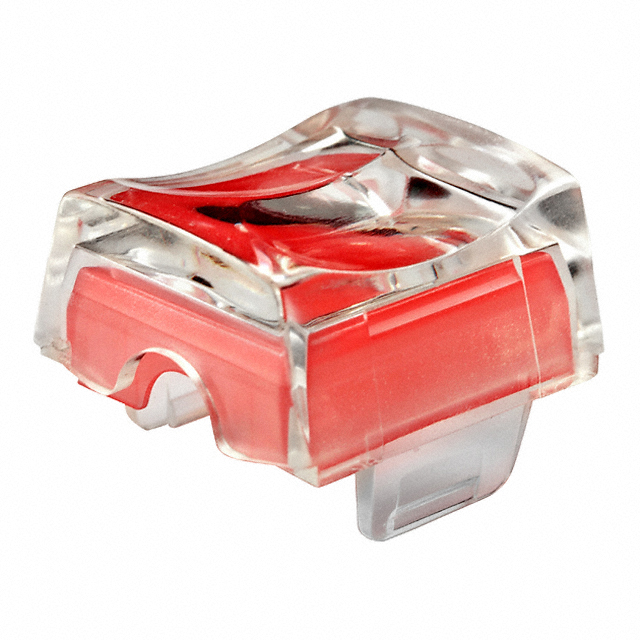

AT4127SC

Obsolete

NKK Switches

CAP ROCKER RECTANGULAR CLEAR/RED

Search across all available documentation for this part.

Obsolete

NKK Switches

CAP ROCKER RECTANGULAR CLEAR/RED

Technical Specifications

Parameters and characteristics for this part

Specification	AT4127SC

Color	Clear, Red
For Use With/Related Products	MLW Series
Illumination	Illuminated
Mounting Type	Snap Fit
Shape	Rectangular, Sculptured
Size [x]	16 mm
Size [y]	15.5 mm
Size [z]	11.5 mm
Switch Type	Rocker

Part	Size [y]	Size [x]	Size [z]	Switch Type	Illumination	Shape	For Use With/Related Products	Color	Mounting Type
NKK Switches AT4127JC	12.6 mm	16 mm	10.5 mm	Rocker	Illuminated	Concave Rectangular	MLW Series	Clear Red	Snap Fit
NKK Switches AT4127SF	15.5 mm	16 mm	11.5 mm	Rocker	Illuminated	Rectangular Sculptured	MLW Series	Clear Green	Snap Fit
NKK Switches AT4127SE	15.5 mm	16 mm	11.5 mm	Rocker	Illuminated	Rectangular Sculptured	MLW Series	Clear Yellow	Snap Fit
NKK Switches AT4127SC	15.5 mm	16 mm	11.5 mm	Rocker	Illuminated	Rectangular Sculptured	MLW Series	Clear Red	Snap Fit
NKK Switches AT4127JF	12.6 mm	16 mm	10.5 mm	Rocker	Illuminated	Concave Rectangular	MLW Series	Clear Green	Snap Fit
NKK Switches AT4127JE	12.6 mm	16 mm	10.5 mm	Rocker	Illuminated	Concave Rectangular	MLW Series	Clear Yellow	Snap Fit
NKK Switches AT4127JB	12.6 mm	16 mm	10.5 mm	Rocker	Illuminated	Concave Rectangular	MLW Series	Clear White	Snap Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular, Sculptured Rocker Switch Cap Clear, Red Snap Fit
