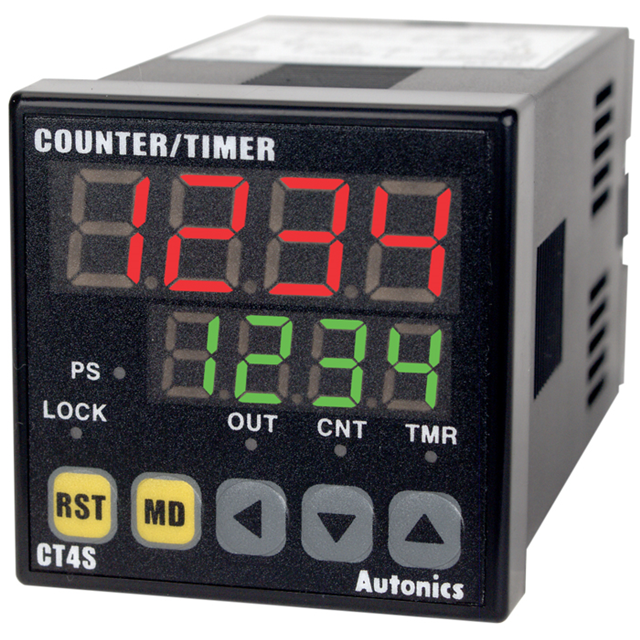

CT4S-2P4T

Active

AUTONICS

COUNTER/TIMER, W48XH48MM, 4-DIGIT, LED, 2 PRESET, PNP OR NPN INPUT, PRESCALE VALUE SETTING, 2 RELAY SPST(2A) 250VAC 5A, NPN OPEN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT4S-2P4T

Active

AUTONICS

COUNTER/TIMER, W48XH48MM, 4-DIGIT, LED, 2 PRESET, PNP OR NPN INPUT, PRESCALE VALUE SETTING, 2 RELAY SPST(2A) 250VAC 5A, NPN OPEN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT4S-2P4T

Count Rate	Multiple
Display Characters - Height	8 mm, 0.394 in, 0.315 in, 10 mm
Display Type	LED - Green, Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Input Type	No Voltage, Voltage
Number of Characters Per Row	4
Number of Characters Per Row	4
Operating Mode	Up, Down
Output Type	Solid State, Relay (2)
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	45 mm
Reset	External, Front Panel
Termination Style	Screw Terminal
Time Format	Multiple
Type	Tachometer, Timer, Preset, Batch, Totalizer
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

CT4S Series

Part	Type	Display Type	Operating Mode	Display Characters - Height	Count Rate	Input Type	Time Format	Number of Characters Per Row	Number of Characters Per Row	Output Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Ingress Protection	Voltage - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Reset
AUTONICS CT4S-2P2	Batch Preset Tachometer Timer Totalizer	LED - Green Red Characters	Down Up	0.315 in 0.394 in 8 mm 10 mm	Multiple	No Voltage Voltage	Multiple	4	4	Relay (2) Solid State	45 mm	45 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	24 VAC	24 V	48 V	External Front Panel
AUTONICS CT4S-2P4	Batch Preset Tachometer Timer Totalizer	LED - Green Red Characters	Down Up	0.315 in 0.394 in 8 mm 10 mm	Multiple	No Voltage Voltage	Multiple	4	4	Relay (2) Solid State	45 mm	45 mm	Screw Terminal	IP65 - Dust Tight Water Resistant		100 VAC	240 VAC	External Front Panel
AUTONICS CT4S-2P4T	Batch Preset Tachometer Timer Totalizer	LED - Green Red Characters	Down Up	0.315 in 0.394 in 8 mm 10 mm	Multiple	No Voltage Voltage	Multiple	4	4	Relay (2) Solid State	45 mm	45 mm	Screw Terminal	IP65 - Dust Tight Water Resistant		100 VAC	240 VAC	External Front Panel
AUTONICS CT4S-1P4	Batch Preset Tachometer Timer Totalizer	LED - Green Red Characters	Down Up	0.315 in 0.394 in 8 mm 10 mm	Multiple	No Voltage Voltage	Multiple	4	4	Relay Solid State	45 mm	45 mm	Screw Terminal	IP65 - Dust Tight Water Resistant		100 VAC	240 VAC	External Front Panel
AUTONICS CT4S-1P2	Batch Preset Tachometer Timer Totalizer	LED - Green Red Characters	Down Up	0.315 in 0.394 in 8 mm 10 mm	Multiple	No Voltage Voltage	Multiple	4	4	Relay Solid State	45 mm	45 mm	Screw Terminal	IP65 - Dust Tight Water Resistant	24 VAC	24 V	48 V	External Front Panel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 210.00
Newark	Each	1	$ 210.00

Description

General part information

CT4S Series

Batch, Preset, Tachometer, Timer, Totalizer 100 ~ 240VAC Panel Mount
