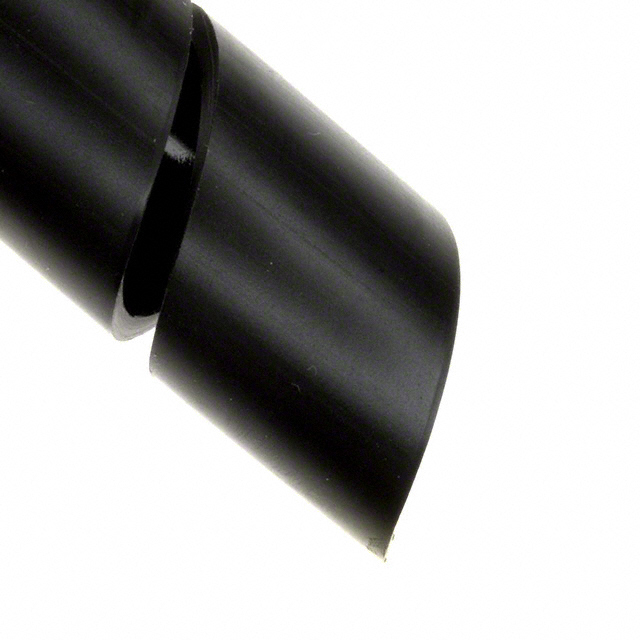

SW44 BK005

Active

ALPHA WIRE

SPIRAL WRAP 0.62" X 100' BLACK

Search across all available documentation for this part.

Active

ALPHA WIRE

SPIRAL WRAP 0.62" X 100' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SW44 BK005

Color	Black
Diameter - Inside, Non-Expanded [diameter]	15.75 mm
Diameter - Inside, Non-Expanded [diameter]	0.62 in
Diameter - Outside, Non-Expanded [diameter]	19.05 mm
Diameter - Outside, Non-Expanded [diameter]	0.75 in
Environment Protection	UV Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Moisture Resistant
Material	Polyethylene (PE)
Operating Temperature [custom]	-66 °C, 88 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.65 mm
Wall Thickness	0.065 in

Part	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material	Liquid Protection	Type Attributes	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type	Length [x]	Length [x]	Environment Protection	Wall Thickness	Wall Thickness	Operating Temperature [custom]	Length	Length
ALPHA WIRE SW44 BK002	Black	15.75 mm	0.62 in	Polyethylene (PE)	Moisture Resistant	Harness	19.05 mm	0.75 in	Spiral Wrap	500 '	152.4 m	UV Resistant	1.65 mm	0.065 in	-66 °C 88 °C
ALPHA WIRE SW44 BK008	Black	15.75 mm	0.62 in	Polyethylene (PE)	Moisture Resistant	Harness	19.05 mm	0.75 in	Spiral Wrap	25 ft	7.62 m	UV Resistant	1.65 mm	0.065 in	-66 °C 88 °C
ALPHA WIRE SW44 BK005	Black	15.75 mm	0.62 in	Polyethylene (PE)	Moisture Resistant	Harness	19.05 mm	0.75 in	Spiral Wrap			UV Resistant	1.65 mm	0.065 in	-66 °C 88 °C	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 0.750" (19.05mm) X 100' (30.48m) Black
