ATS-1098-C1-R0

Active

Advanced Thermal Solutions Inc.

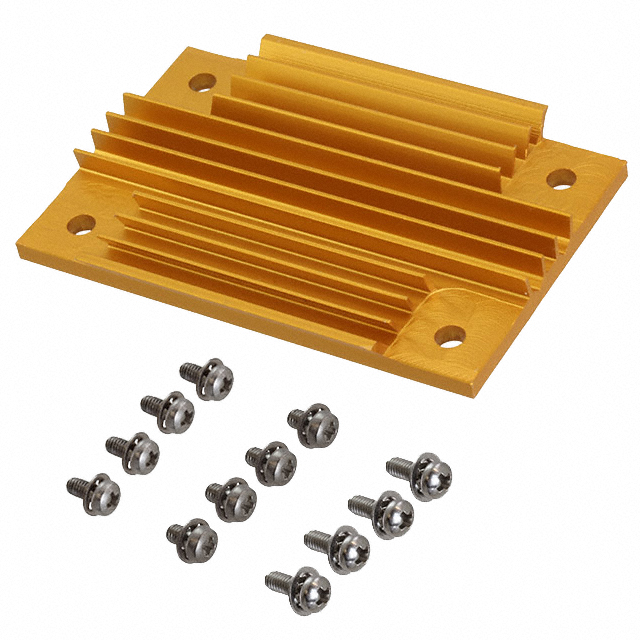

HEAT SINKS MAXIFLOW POWER BRICK HEAT SINK, 1/4, GOLD, T766, 58X37X6.1MM, 37MM DIA.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-1098-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIFLOW POWER BRICK HEAT SINK, 1/4, GOLD, T766, 58X37X6.1MM, 37MM DIA.

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-1098-C1-R0

Attachment Method	Bolt On
Fin Height	6.1 mm
Fin Height	0.24 in
Material	Aluminum
Package Cooled	Quarter Brick DC/DC Converter
Shape	Rectangular, Angled Fins
Thermal Resistance @ Forced Air Flow	12.1 °C/W, 200 LFM
Type	Top Mount

Power Brick Series

Heat Sinks maxiFLOW Power Brick Heat Sink, 1/4, Gold, T766, 37x58x22.9mm, 58mm dia.

Part	Width	Width	Package Cooled	Fin Height	Fin Height	Type	Shape	Length	Length	Attachment Method	Material	Thermal Resistance @ Forced Air Flow	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Length [x]	Length [x]
Advanced Thermal Solutions Inc. ATS-1148-C1-R0	118 mm	4.646 in	Full Brick DC/DC Converter	6.1 mm	0.24 in	Top Mount	Rectangular Angled Fins	2.402 "	61 mm	Bolt On	Aluminum	2.4 °C/W 200 LFM
Advanced Thermal Solutions Inc. ATS-1108-C1-R0			Full Brick DC/DC Converter	6.1 mm	0.24 in	Top Mount	Rectangular Angled Fins	4.598 in	116.8 mm	Bolt On	Aluminum	9.4 °C/W	2.401 in	61 mm
Advanced Thermal Solutions Inc. ATS-1109-C1-R0			Full Brick DC/DC Converter			Top Mount	Rectangular Angled Fins	4.598 in	116.8 mm	Bolt On	Aluminum	5.2 °C/W	2.401 in	61 mm	0.449 in	11.4 mm
Advanced Thermal Solutions Inc. ATS-1141-C1-R0			Quarter Brick DC/DC Converter	22.9 mm	0.902 in	Top Mount	Rectangular Angled Fins	1.457 in	37 mm	Bolt On	Aluminum	1.6 °C/W 200 LFM					59 mm	2.323 in
Advanced Thermal Solutions Inc. ATS-1184-C1-R0			Eighth Brick DC/DC Converter			Top Mount	Rectangular Angled Fins			Bolt On	Aluminum	6.7 °C/W 200 LFM			0.449 in	11.4 mm	59 mm	2.323 in	23 mm	0.9 in
Advanced Thermal Solutions Inc. ATS-1143-C1-R0			Half Brick DC/DC Converter	6.1 mm	0.24 in	Top Mount	Rectangular Angled Fins			Bolt On	Aluminum	9.4 °C/W	2.401 in	61 mm
Advanced Thermal Solutions Inc. ATS-1098-C1-R0			Quarter Brick DC/DC Converter	6.1 mm	0.24 in	Top Mount	Rectangular Angled Fins			Bolt On	Aluminum	12.1 °C/W 200 LFM
Advanced Thermal Solutions Inc. ATS-1146-C1-R0			Half Brick DC/DC Converter	22.9 mm	0.902 in	Top Mount	Rectangular Angled Fins	2.323 in	59 mm	Bolt On	Aluminum	1.3 °C/W 200 LFM	2.401 in	61 mm
Advanced Thermal Solutions Inc. ATS-1178-C1-R0			Eighth Brick DC/DC Converter	6.1 mm	0.24 in	Top Mount	Rectangular Angled Fins			Bolt On	Aluminum	18.8 °C/W 200 LFM					23.31 mm	0.918 in
Advanced Thermal Solutions Inc. ATS-1149-C1-R0	118 mm	4.646 in	Full Brick DC/DC Converter			Top Mount	Rectangular Angled Fins	2.402 "	61 mm	Bolt On	Aluminum	1 °C/W 200 LFM			0.449 in	11.4 mm
