SDB-37PMMP-SR7001

Active

Amphenol LTW

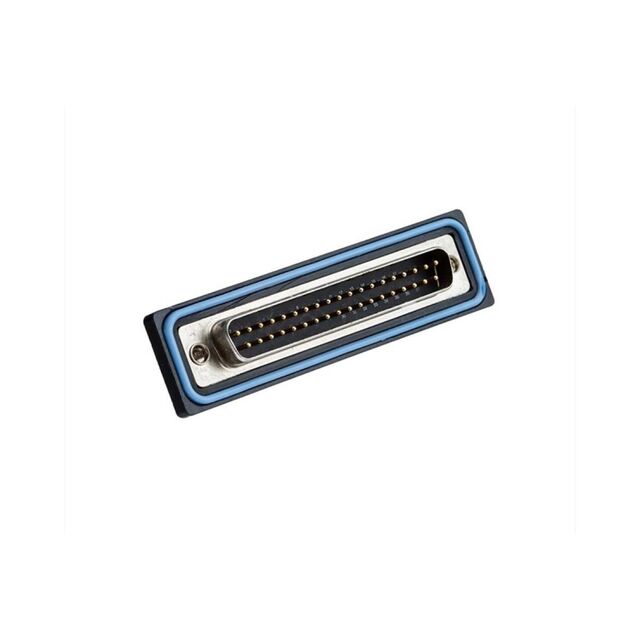

CONN D-SUB PLUG 37POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB PLUG 37POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-37PMMP-SR7001

Backset Spacing	0.282 in
Backset Spacing	7.15 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

Part	Contact Type	Number of Positions	Flange Feature	Connector Type	Contact Finish	Shell Size, Connector Layout	Termination	Contact Material	Backset Spacing	Backset Spacing	Ingress Protection	Shell Material, Finish	Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Current Rating (Amps)	Mounting Type	Dielectric Material	Number of Rows
Amphenol LTW SDB-37PMMP-SR7001	Signal	37	Female Screwlock (4-40) Mating Side	Male Pins Plug	Gold	4 (DC C)	Solder	Copper Alloy	0.282 in	7.15 mm	IP67 - Dust Tight Waterproof	Nickel Plated Steel	Black	Shielded	-40 °C	105 ░C	D-Sub	5 A	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Plug, Male Pins Connector
