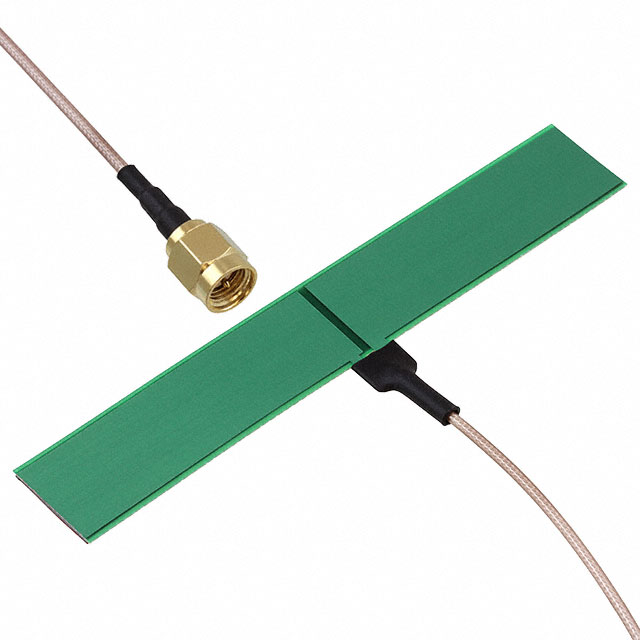

TPCB02593-12-AM-AGDP-L
ActiveNearson Inc.
ANTENNA EMBEDDED MICROSTRIPE R/A
Deep-Dive with AI
Search across all available documentation for this part.
TPCB02593-12-AM-AGDP-L
ActiveNearson Inc.
ANTENNA EMBEDDED MICROSTRIPE R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPCB02593-12-AM-AGDP-L |
|---|---|
| Antenna Type | PCB Trace |
| Frequency (Center/Band) | 892 MHz, 1.85 GHz |
| Frequency Range [Max] | 960 MHz, 1.99 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 0 dBi, 2 dBic |
| Height (Max) [Max] [z] | 0.016 in |
| Height (Max) [Max] [z] | 0.4 mm |
| Number of Bands | 4 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.22 | |
| 10 | $ 15.44 | |||
| 25 | $ 13.95 | |||
Description
General part information
TPCB02593 Series
RF ANTENNA PCB Trace MMCX
Documents
Technical documentation and resources
No documents available
