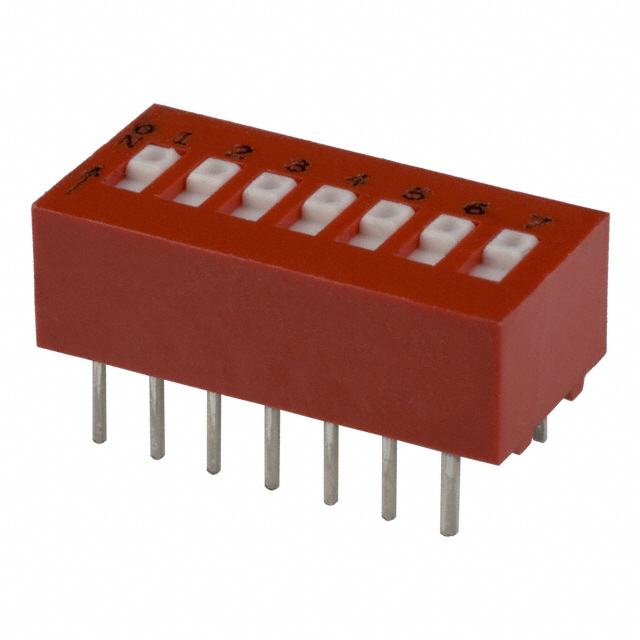

78RB07T

Active

Grayhill Inc.

SWITCH DIP OFF ON SPST 7 RECESSED SLIDE 0.15A 30VDC PC PINS 2000CYCLES 2.54MM THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH DIP OFF ON SPST 7 RECESSED SLIDE 0.15A 30VDC PC PINS 2000CYCLES 2.54MM THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Actuator Level	Mounting Type	Washable	Contact Finish	Mechanical Life	Body Material	Electrical Life	Actuator Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Voltage Rating	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Termination Style
Grayhill Inc. 78RB07T	SPST	Flush Recessed	Through Hole		Gold	2000 Cycles	Thermoplastic	2000 Steps	Slide (Standard)	Copper Alloy	85 °C	-40 °C	0.265 in	6.73 mm	30 VDC	7	0.1 in	Full	2.54 mm	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	13	$ 4.16

General part information

Dip Switch SPST 7 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
