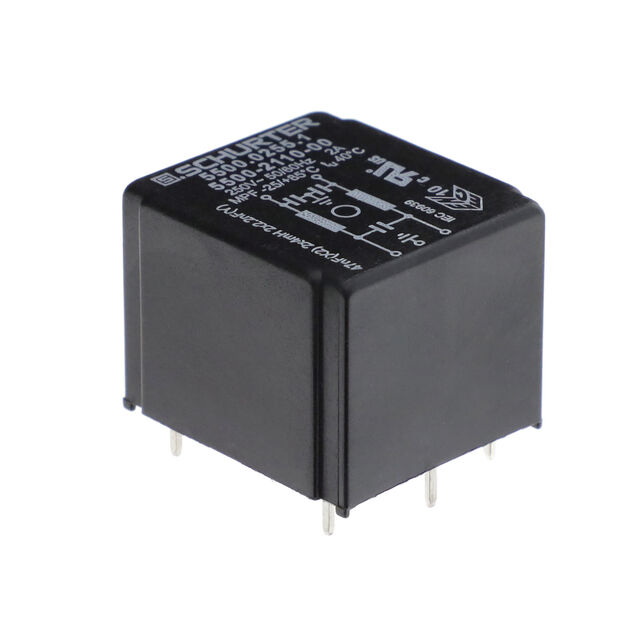

5500.0255.1
ActiveSCHURTER Inc.
NOT AVAILABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5500.0255.1
ActiveSCHURTER Inc.
NOT AVAILABLE ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5500.0255.1 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cURus, VDE, ENEC |
| Configuration | Single Stage |
| Current | 2 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 4 mH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | PC Pins |
| Voltage - Rated AC | 125 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5500.0255 Series
Single Phase EMC/EMI Line Filter 2 A 125V, 250V 50/60Hz Single Stage PC Pins
