1990766

Active

Phoenix Contact

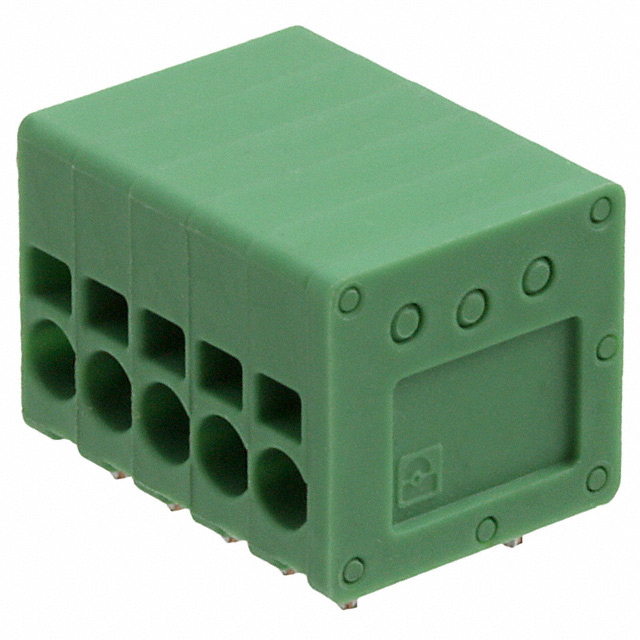

FIXED TERMINAL BLOCKS SPT 1.5/ 5-H-3.5 3.5MM 5P HORZ SPR

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SPT 1.5/ 5-H-3.5 3.5MM 5P HORZ SPR

Technical Specifications

Parameters and characteristics for this part

Specification	1990766

Color	Green
Current	10 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	5
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks SPT 2.5/ 7-H-5.0 5MM 7P HORZ SPR

Part	Mounting Type	Color	Pitch [x]	Pitch [x]	Positions Per Level	Wire Termination	Current	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Housing Material	Voltage	Number of Levels
Phoenix Contact 1991079	Through Hole	Green	5 mm	0.197 in	12	Screwless - Spring Cage Tension Clamp	20 A	Horizontal with Board	12 AWG	24 AWG	Polyamide (PA) Nylon	300 V	1
Phoenix Contact 1990766	Through Hole	Green	3.5 mm	0.138 in	5	Screwless - Spring Cage Tension Clamp	10 A	Horizontal with Board	16 AWG	24 AWG	Polyamide (PA) Nylon	300 V	1
Phoenix Contact 1991024	Through Hole	Green	5 mm	0.197 in	7	Screwless - Spring Cage Tension Clamp	20 A	Horizontal with Board	12 AWG	24 AWG	Polyamide (PA) Nylon	300 V	1
Phoenix Contact 1751066	Through Hole	Green			1	Screwless - Spring Cage Tension Clamp	20 A	Horizontal with Board	12 AWG	24 AWG	Polyamide (PA) Nylon	300 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks SPT 2.5/ 7-H-5.0 5MM 7P HORZ SPR
