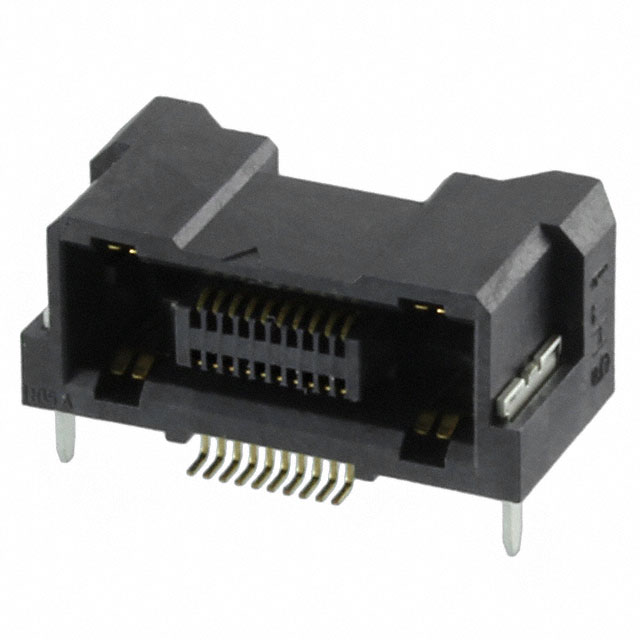

FX23-20S-0.5SH

Active

Hirose Electric USA, Inc.

CONN BOARD TO BOARD RCP 4POWER/20SIGNAL POS 0.5MM SOLDER RA SMD TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX23-20S-0.5SH Spec

FX23-20S-0.5SH

Active

Hirose Electric USA, Inc.

CONN BOARD TO BOARD RCP 4POWER/20SIGNAL POS 0.5MM SOLDER RA SMD TRAY

Deep-Dive with AI

DocumentsFX23-20S-0.5SH Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX23-20S-0.5SH

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board [z]	0.287 in
Height Above Board [z]	7.3 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Positions [custom]	4
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX23 Series

Part	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Features	Number of Rows	Number of Positions	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX23-100S-0.5SVB	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	100	Gold
Hirose Electric USA, Inc. FX23-120S-0.5SV	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	124	Gold	4	120	4 Áin	0.1 Ám	15 mm 20 mm
Hirose Electric USA, Inc. FX23-20S-0.5SH	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount Right Angle			Board Guide	2	24	Gold	4		4 Áin	0.1 Ám		0.287 in	7.3 mm
Hirose Electric USA, Inc. FX23-60S-0.5SV(20)	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	60	Gold					15 mm 20 mm
Hirose Electric USA, Inc. FX23-20P-0.5SV20	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount			Board Guide	2	24	Gold	4		4 Áin	0.1 Ám	20 mm 30 mm	0.703 in	17.85 mm
Hirose Electric USA, Inc. FX23-120S-0.5SVB	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	124	Gold	4	120	3.94 µin	0.1 Ám	15 mm 20 mm
Hirose Electric USA, Inc. FX23-120P-0.5SV20	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount			Board Guide	2	124	Gold	4	120	4 Áin	0.1 Ám	20 mm 30 mm	0.703 in	17.85 mm
Hirose Electric USA, Inc. FX23-20S-0.5SV10B	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount			Board Guide	2	20	Gold					25 mm 30 mm	0.661 "	16.8 mm
Hirose Electric USA, Inc. FX23-20P-0.5SV15B	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount	12.85 mm	0.506 "	Board Guide	2	24	Gold	4		3.94 µin	0.1 Ám	15 mm 25 mm
Hirose Electric USA, Inc. FX23-80P-0.5SV15B	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount	12.85 mm	0.506 "	Board Guide	2	4 80 84	Gold			3.94 µin	0.1 Ám	15 mm 25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.35
		10	$ 3.33
		25	$ 3.00
		40	$ 2.85
		80	$ 2.64
		230	$ 2.36
		440	$ 2.20
		945	$ 2.04
		2400	$ 1.86

Description

General part information

FX23 Series

24 (20 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

FX23-20S-0.5SH Spec

Datasheet
