LS-2506/PSA-5-7(10)

Obsolete

3M (TC)

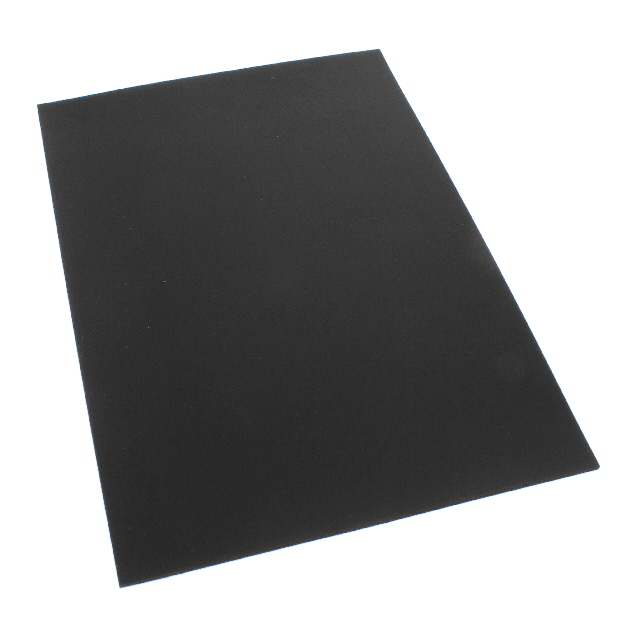

ISOLOSS LS-2506/PSA GASKET FOAM

Search across all available documentation for this part.

Obsolete

3M (TC)

ISOLOSS LS-2506/PSA GASKET FOAM

Technical Specifications

Parameters and characteristics for this part

Specification	LS-2506/PSA-5-7(10)

Color	Black
Density	25 lb/ft³
Material	Polyurethane
Material Flammability Rating	UL94 HBF
Size / Dimension [custom]	127 mm
Size / Dimension [custom]	177.8 mm
Size / Dimension [custom]	7 in
Size / Dimension [custom]	5 in
Thickness	1.52 mm
Thickness	0.06 in

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Material Flammability Rating	Material	Color	Density	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]
3M (TC) LS-2506/PSASQ-2(50)	2 in	50.8 mm	50.8 mm	2 in	1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black	25 lb/ft³
3M (TC) LS-2506/PSA-0.5"X180"-1RL	180 in	12.7 mm	4572 mm	0.5 in	1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black
3M (TC) LS-2506/PSA-1"X180"-1RL	180 in			1 in	1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black	25 lb/ft³	25.4 mm 4572 mm
3M (TC) LS-2506/PSA-1"CIRCLE-50PK					1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black	25 lb/ft³		1 in	25.4 mm
3M (TC) LS-2506/PSA-12-12(6)	12 "	304.8 mm	304.8 mm	12 in	1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black	25 lb/ft³
3M (TC) LS-2506/PSA-5-7(10)					1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black	25 lb/ft³				127 mm	177.8 mm	7 in	5 in
3M (TC) LS-2506/PSA-0.75"X180"-1RL	180 in	19.1 mm	4572 mm	0.75 in	1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black	25 lb/ft³
3M (TC) LS-2506/PSA-2"CIRCLE-50PK					1.52 mm	0.06 in	UL94 HBF	Polyurethane	Black	25 lb/ft³		2 in	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Foam 5.00" W x 7.00" L (127.0mm x 177.8mm) X 0.060" (1.52mm) Polyurethane Black

Technical documentation and resources

No documents available
