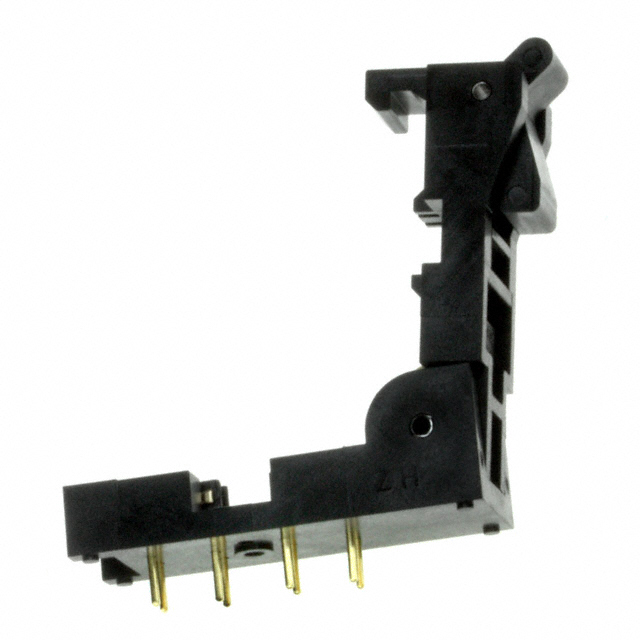

208-7391-55-1902
Active3M (TC)
CONN SOCKET SOIC 8POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
208-7391-55-1902
Active3M (TC)
CONN SOCKET SOIC 8POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 208-7391-55-1902 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polyethersulfone (PES), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Termination Post Length | 3.56 mm |
| Termination Post Length | 0.14 in |
| Type | SOIC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.98 | |
| 10 | $ 35.58 | |||
| 25 | $ 32.28 | |||
| 50 | $ 30.06 | |||
| 100 | $ 28.04 | |||
| 250 | $ 25.67 | |||
Description
General part information
208 Series
8 (2 x 4) Pos SOIC Socket Gold Through Hole
