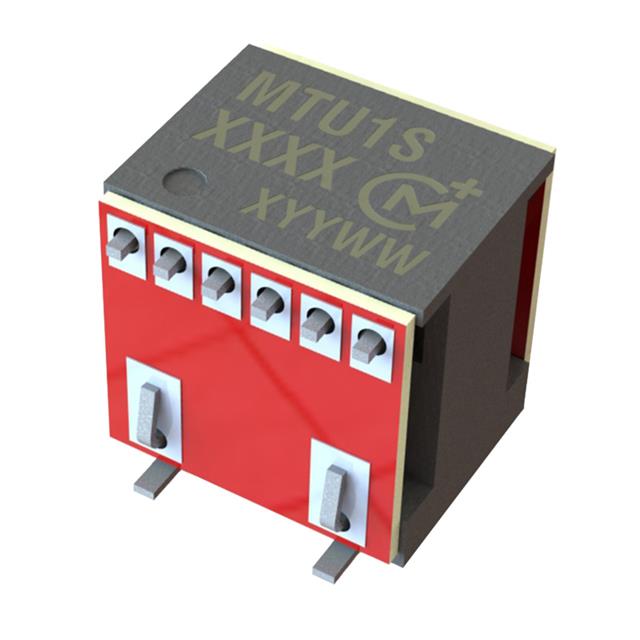

MTU1D0509MC

Active

Murata Power Solutions Inc.

ISOLATED BOARD MOUNT DC/DC CONVERTER, SMD, FIXED, 5 V, 2 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

MTU1D0509MC

Active

Murata Power Solutions Inc.

ISOLATED BOARD MOUNT DC/DC CONVERTER, SMD, FIXED, 5 V, 2 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTU1D0509MC

Applications	ITE (Commercial)
Efficiency	86 %
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-SMD Module
Size / Dimension [x]	8.4 mm
Size / Dimension [x]	0.33 in
Size / Dimension [y]	8.2 mm
Size / Dimension [y]	0.32 in
Size / Dimension [z]	0.34 in
Size / Dimension [z]	8.5 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	9 V
Voltage - Output 2	-9 V

MTU1D05 Series

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Type	Applications	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. MTU1D0505MC-R	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	2	-5 V	85 °C	-40 °C	84 %	Isolated Module	ITE (Commercial)	4.5 V	100 mA	100 mA	5 V	1000 V	5.5 V	5-SMD Module	Surface Mount
Murata Power Solutions Inc. MTU1D0509MC-R	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	2	-9 V	85 °C	-40 °C	86 %	Isolated Module	ITE (Commercial)	4.5 V			9 V	1000 V	5.5 V	5-SMD Module	Surface Mount
Murata Power Solutions Inc. MTU1D0509MC	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	2	-9 V	85 °C	-40 °C	86 %	Isolated Module	ITE (Commercial)	4.5 V			9 V	1000 V	5.5 V	5-SMD Module	Surface Mount
Murata Power Solutions Inc. MTU1D0512MC-R	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	2	-12 V	85 °C	-40 °C	87 %	Isolated Module	ITE (Commercial)	4.5 V			12 V	1000 V	5.5 V	5-SMD Module	Surface Mount	42 mA	42 mA
Murata Power Solutions Inc. MTU1D0512MC	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	2	-12 V	85 °C	-40 °C	87 %	Isolated Module	ITE (Commercial)	4.5 V			12 V	1000 V	5.5 V	5-SMD Module	Surface Mount	42 mA	42 mA
Murata Power Solutions Inc. MTU1D0515MC-R	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	2	-15 V	85 °C	-40 °C	88 %	Isolated Module	ITE (Commercial)	4.5 V		33 mA	15 V	1000 V	5.5 V	5-SMD Module	Surface Mount
Murata Power Solutions Inc. MTU1D0515MC	8.2 mm	0.34 in	8.5 mm	8.4 mm	0.32 in	0.33 in	2	-15 V	85 °C	-40 °C	88 %	Isolated Module	ITE (Commercial)	4.5 V		33 mA	15 V	1000 V	5.5 V	5-SMD Module	Surface Mount
