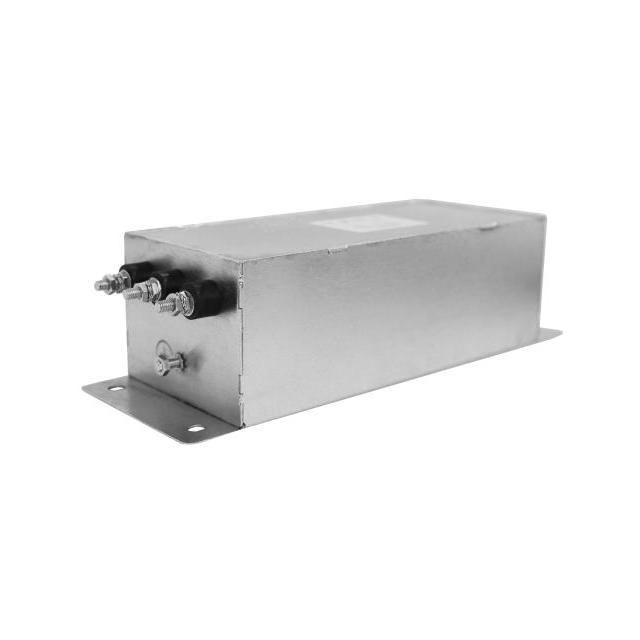

RP320-300-100-S

Active

Astrodyne TDI

LINE FILTER 480VAC 300A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP320-300-100-S

Active

Astrodyne TDI

LINE FILTER 480VAC 300A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP320-300-100-S

Applications	General Purpose
Approval Agency	CSA, cURus, SEMKO, ENEC, CE
Configuration	Two Stage
Current	300 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Threaded Post (M12)
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.5 kV

RP320 Series

...

Part	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Mounting Type	Termination Style	Configuration	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [custom]	Approval Agency	Filter Type	Voltage - Rated AC
Astrodyne TDI RP320-200-2000-C	200 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Terminal Block	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-80-100-C	80 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Terminal Block	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-300-100-S	300 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Threaded Post (M12)	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-50-1000-W	50 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Wire Leads	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-150-0-C	150 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Terminal Block	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-150-1000-S	150 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Threaded Post (M5)	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-50-10-S	50 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Threaded Post (M5)	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-200-2000-S	200 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Threaded Post (M5)	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-30-100-S	30 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Threaded Post (M5)	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V
Astrodyne TDI RP320-100-100-W	100 A	60 Hz	50 Hz	General Purpose	Chassis Mount	Wire Leads	Two Stage	3.5 kV	-25 °C 100 °C	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1128.87

Description

General part information

RP320 Series

Three Phase (Delta) EMC/EMI Line Filter 300 A 480V 50/60Hz Two Stage Threaded Post (M12)
