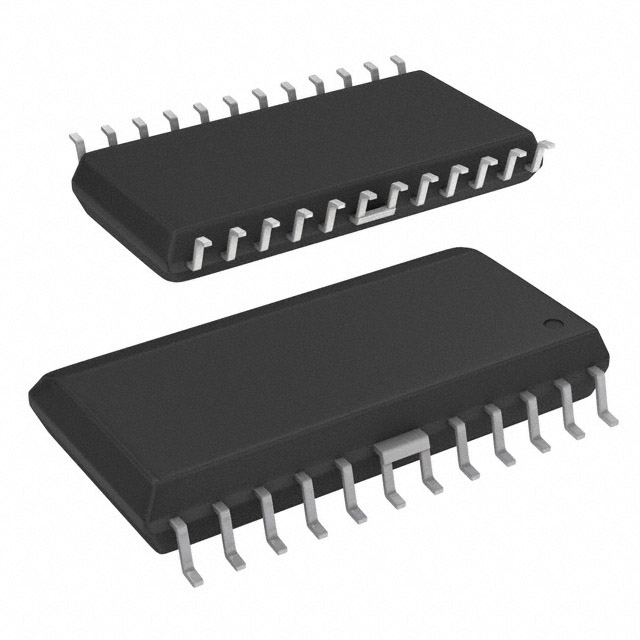

A3967SLBTR-T
ActiveAllegro MicroSystems
IC MTR DRV BIPOLAR 3-5.5V 24SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3967SLBTR-T
ActiveAllegro MicroSystems
IC MTR DRV BIPOLAR 3-5.5V 24SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A3967SLBTR-T |
|---|---|
| Applications | General Purpose |
| Current - Output | 750 mA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Logic |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 24-SOIC |
| Package / Case [custom] | 7.5 mm |
| Package / Case [custom] | 0.295 in |
| Step Resolution | 1/2, 1, 1/8, 1/4 |
| Supplier Device Package | 24-SOIC |
| Technology | Bipolar |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 4.75 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.47 | |
| 10 | $ 2.61 | |||
| 25 | $ 2.40 | |||
| 100 | $ 2.16 | |||
| 250 | $ 2.05 | |||
| 500 | $ 1.98 | |||
| Digi-Reel® | 1 | $ 3.47 | ||
| 10 | $ 2.61 | |||
| 25 | $ 2.40 | |||
| 100 | $ 2.16 | |||
| 250 | $ 2.05 | |||
| 500 | $ 1.98 | |||
| Tape & Reel (TR) | 1000 | $ 1.92 | ||
| 2000 | $ 1.88 | |||
| 3000 | $ 1.86 | |||
| 5000 | $ 1.83 | |||
Description
General part information
A3967 Series
Bipolar Motor Driver Bipolar Logic 24-SOIC
