SS-60300-103

Active

BEL MAGNETIC SOLUTIONS

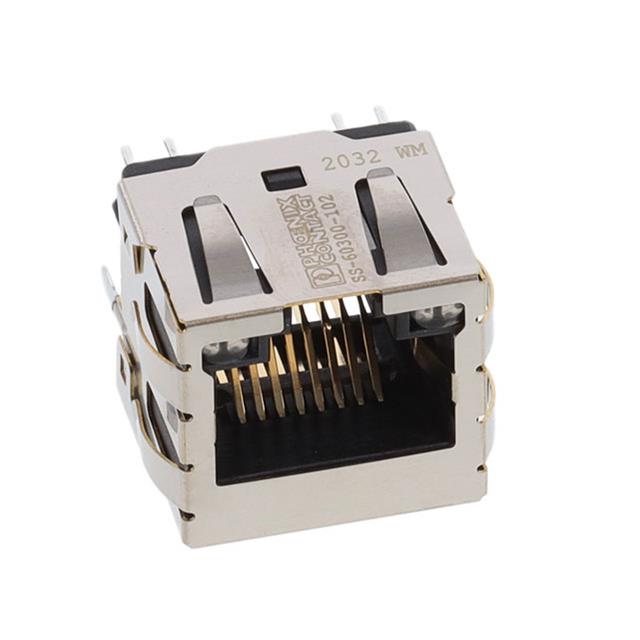

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SS-60300-103

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-60300-103

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Up
Termination	Solder

SS-60300 Series

Part	Housing Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions/Contacts	Connector Type	Tab Direction	Number of Ports	Contact Finish	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Material	LED Color	Orientation	Mounting Type	Ratings	Orientation
BEL MAGNETIC SOLUTIONS SS-60300-010	Thermoplastic	Solder	50 µin	1.27 µm	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Jack	Up	1	Gold	1	85 °C	-40 °C	Board Guide	Copper Alloy	Does Not Contain LED	90 °	Through Hole	Cat6a
BEL MAGNETIC SOLUTIONS SS-60300-059		Solder			Shielded	8p8c (RJ45 Ethernet)	Jack					85 °C	-40 °C				45 °	Through Hole	Cat6a
BEL MAGNETIC SOLUTIONS SS-60300-004	Thermoplastic	Solder	50 µin	1.27 µm	Shielded	8p8c (RJ45 Ethernet)	Jack	Up	1	Gold	1	85 °C	-40 °C	Board Guide	Copper Alloy	Does Not Contain LED	90 °	Through Hole	Cat6a
BEL MAGNETIC SOLUTIONS SS-60300-104	Thermoplastic	Solder	50 µin	1.27 µm	Shielded	8p8c (RJ45 Ethernet)	Jack	User Selectable	1	Gold	1	85 °C	-40 °C		Copper Alloy	Green Yellow		Through Hole		Vertical
BEL MAGNETIC SOLUTIONS SS-60300-023	Thermoplastic	Solder	50 µin	1.27 µm	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Jack	Up	1	Gold	1			Board Guide	Copper Alloy	Does Not Contain LED	45 °	Through Hole	Cat6a
BEL MAGNETIC SOLUTIONS SS-60300-102	Thermoplastic	Solder	50 µin	1.27 µm	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Jack	User Selectable	1	Gold	1	85 °C	-40 °C		Copper Alloy	Green Yellow		Panel Mount Through Hole		Vertical
BEL MAGNETIC SOLUTIONS SS-60300-103	Thermoplastic	Solder	50 µin	1.27 µm	Shielded	8p8c (RJ45 Ethernet)	Jack	Up	1	Gold	1	85 °C	-40 °C		Copper Alloy	Green Yellow	90 °	Through Hole
BEL MAGNETIC SOLUTIONS SS-60300-002	Thermoplastic	Solder	50 µin	1.27 µm	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Jack	Up	1	Gold	1	85 °C	-40 °C	Board Guide	Copper Alloy	Does Not Contain LED	90 °	Through Hole	Cat6a
BEL MAGNETIC SOLUTIONS SS-60300-014	Thermoplastic	Solder	50 µin	1.27 µm	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Jack	User Selectable	1	Gold	1	85 °C	-40 °C		Copper Alloy	Does Not Contain LED		Through Hole	Cat6a	Vertical
BEL MAGNETIC SOLUTIONS SS-60300-016	Thermoplastic	Solder	50 µin	1.27 µm	Shielded	8p8c (RJ45 Ethernet)	Jack	User Selectable	1	Gold	1			Board Guide	Copper Alloy	Does Not Contain LED		Through Hole	Cat6a	Vertical
