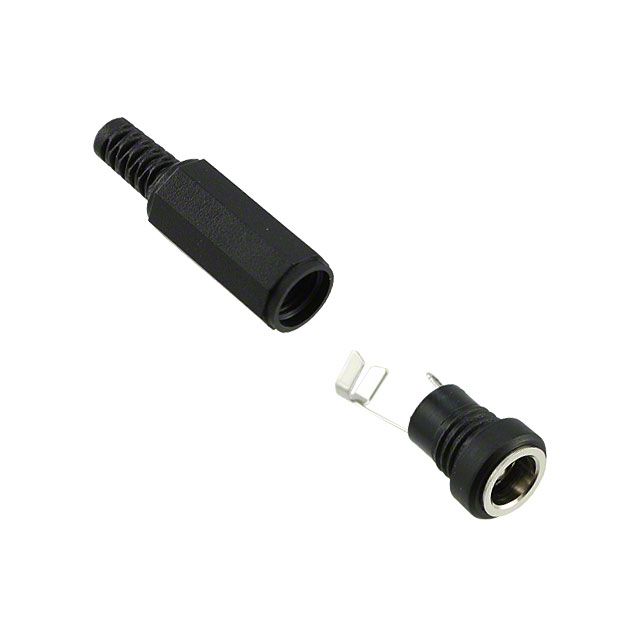

PR-002A
ActiveCUI Devices
CONN PWR JACK 2.1X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR-002A
ActiveCUI Devices
CONN PWR JACK 2.1X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR-002A |
|---|---|
| Actual Diameter [custom] | 2 mm |
| Actual Diameter [custom] | 0.224 in |
| Actual Diameter [custom] | 5.7 mm |
| Actual Diameter [custom] | 0.079 " |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Phosphor Bronze |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 4 A |
| Features | Strain Relief |
| Gender | Male |
| Housing Material | Polyamide (PA), Nylon |
| Includes | 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 0.083 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.1 mm |
| Internal Switch(s) | False |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.18 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.19 | |||
| 50 | $ 2.03 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.70 | |||
| 500 | $ 1.58 | |||
| 1000 | $ 1.47 | |||
| 2500 | $ 1.35 | |||
Description
General part information
PR-002 Series
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Free Hanging (In-Line)
