S-5741RBH1-M3T2U
ABLIC Inc.
MAGNETIC SWITCH LATCH SOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S-5741RBH1-M3T2U
ABLIC Inc.
MAGNETIC SWITCH LATCH SOT23-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S-5741RBH1-M3T2U |
|---|---|
| Current - Output (Max) [Max] | 20 mA |
| Current - Supply (Max) [Max] | 4 mA |
| Function | Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain |

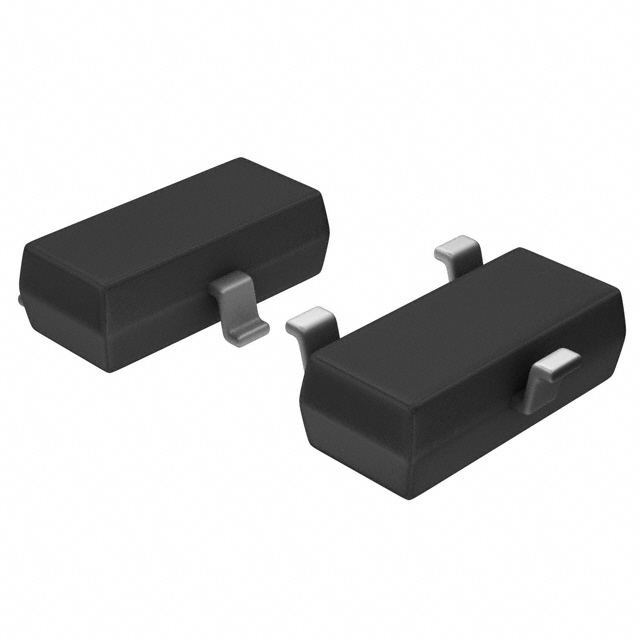

| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Polarization | South Pole |
| Sensing Range | 3 mT, -3 mT |
| Supplier Device Package | SOT-23-3 |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 26 V |
| Voltage - Supply [Min] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.48 | |
Description
General part information
S-5741 Series
Digital Switch Latch Open Drain Hall Effect SOT-23-3
