1426Q

Active

Hammond Manufacturing

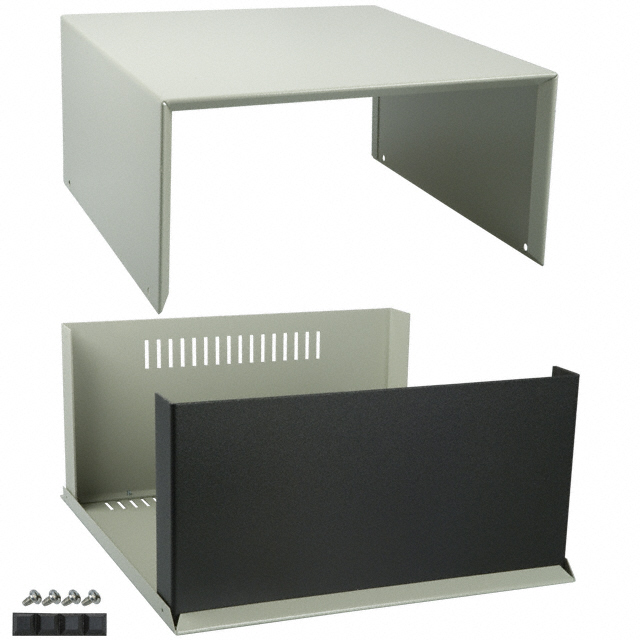

BOX STEEL WHT 11.75"L X 11"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1426 Series

1426Q

Active

Hammond Manufacturing

BOX STEEL WHT 11.75"L X 11"W

Deep-Dive with AI

Documents1426 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1426Q

Area (L x W)	129 in²
Area (L x W)	832 cm²
Color	Off, White
Container Type	Box
Design	U Shaped Pieces
Features	Vented Panels, Separate Panel or Cover Thickness
Height [z]	5.5 in
Height [z]	139.7 mm
Material	Metal, Steel
Size / Dimension [x]	298.45 mm
Size / Dimension [x]	11.75 in
Size / Dimension [y]	279.4 mm
Size / Dimension [y]	11 in
Thickness	20
Weight	2.4 kg
Weight	5.3 lbs

1426 Series

Part	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Features	Container Type	Color	Weight	Weight	Material	Height [z]	Height [z]	Design
Hammond Manufacturing 1426K-B	194 cm˛	30 in˛	6 in	127 mm	152.4 mm	5 "	20	Separate Panel or Cover Thickness Vented Panels	Box	Blue	725.7 g	1.6 lbs	Metal Steel	101.6 mm	101.6 mm	U Shaped Pieces
Hammond Manufacturing 1426Y-B	465 cm²	72 in²	12 in	152.4 mm	304.8 mm	6 "	20	Separate Panel or Cover Thickness Vented Panels	Box	Blue	1.7 kg	3.7 lbs	Metal Steel	139.7 mm	5.5 in	U Shaped Pieces
Hammond Manufacturing 1426M-B	310 cm²	48 in²					20	Separate Panel or Cover Thickness Vented Panels	Box	Blue	1 kg	2.3 lbs	Metal Steel	101.6 mm	101.6 mm	U Shaped Pieces
Hammond Manufacturing 1426S	465 cm²	72 in²	12 in	152.4 mm	304.8 mm	6 "	20	Separate Panel or Cover Thickness Vented Panels	Box	Off White	1.5 kg	3.2 lbs	Metal Steel	101.6 mm	101.6 mm	U Shaped Pieces
Hammond Manufacturing 1426Q-B	832 cm²	129 in²	11.75 in	279.4 mm	298.45 mm	11 in	20	Separate Panel or Cover Thickness Vented Panels	Box	Blue	2.4 kg	5.3 lbs	Metal Steel	139.7 mm	5.5 in	U Shaped Pieces
Hammond Manufacturing 1426K	194 cm˛	30 in˛	6 in	127 mm	152.4 mm	5 "	20	Separate Panel or Cover Thickness Vented Panels	Box	Off White	725.7 g	1.6 lbs	Metal Steel	101.6 mm	101.6 mm	U Shaped Pieces
Hammond Manufacturing 1426Q	832 cm²	129 in²	11.75 in	279.4 mm	298.45 mm	11 in	20	Separate Panel or Cover Thickness Vented Panels	Box	Off White	2.4 kg	5.3 lbs	Metal Steel	139.7 mm	5.5 in	U Shaped Pieces
Hammond Manufacturing 1426V-B	619 cm˛	96 in˛	12 in	203.2 mm	304.8 mm	8 in	20	Separate Panel or Cover Thickness Vented Panels	Box	Blue	1.7 kg	3.7 lbs	Metal Steel	101.6 mm	101.6 mm	U Shaped Pieces
Hammond Manufacturing 1426M	310 cm²	48 in²					20	Separate Panel or Cover Thickness Vented Panels	Box	Off White	1 kg	2.3 lbs	Metal Steel	101.6 mm	101.6 mm	U Shaped Pieces
Hammond Manufacturing 1426S-B	465 cm²	72 in²	12 in	152.4 mm	304.8 mm	6 "	20	Separate Panel or Cover Thickness Vented Panels	Box	Blue	1.5 kg	3.2 lbs	Metal Steel	101.6 mm	101.6 mm	U Shaped Pieces

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.51
		10	$ 64.32
		100	$ 61.11

Description

General part information

1426 Series

Box Metal, Steel White, Off U Shaped Pieces 11.750" L x 11.000" W (298.45mm x 279.40mm) X 5.500" (139.70mm)

Documents

Technical documentation and resources

1426 Series

Datasheet
