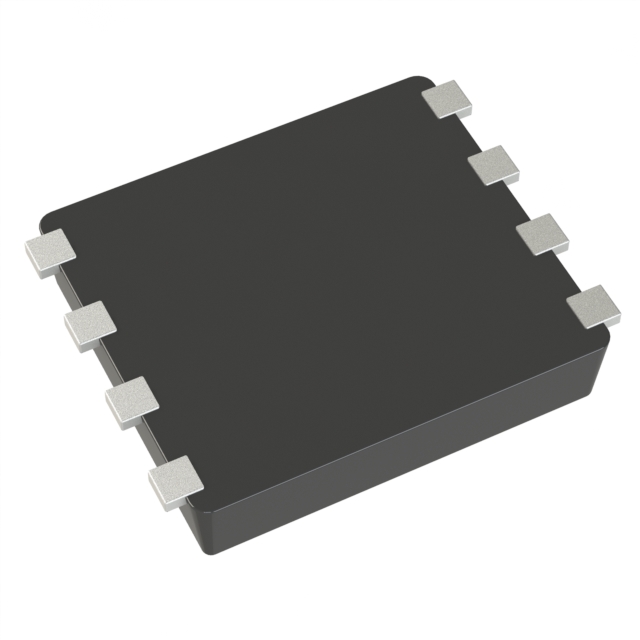

S-89120BPH-H4B-TFU
ActiveABLIC Inc.
IC CMOS 2 CIRCUIT SNT8A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S-89120BPH-H4B-TFU
ActiveABLIC Inc.
IC CMOS 2 CIRCUIT SNT8A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S-89120BPH-H4B-TFU |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 13 mA |
| Current - Supply | 10 µA |
| Gain Bandwidth Product | 40 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Slew Rate | 0.015 V/µs |
| Supplier Device Package | SNT-8A |
| Voltage - Input Offset | 3 mV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.82 | |
| Digi-Reel® | 1 | $ 0.82 | ||
| Tape & Reel (TR) | 5000 | $ 0.27 | ||
Description
General part information
S-89120 Series
CMOS Amplifier 2 Circuit SNT-8A
Documents
Technical documentation and resources
