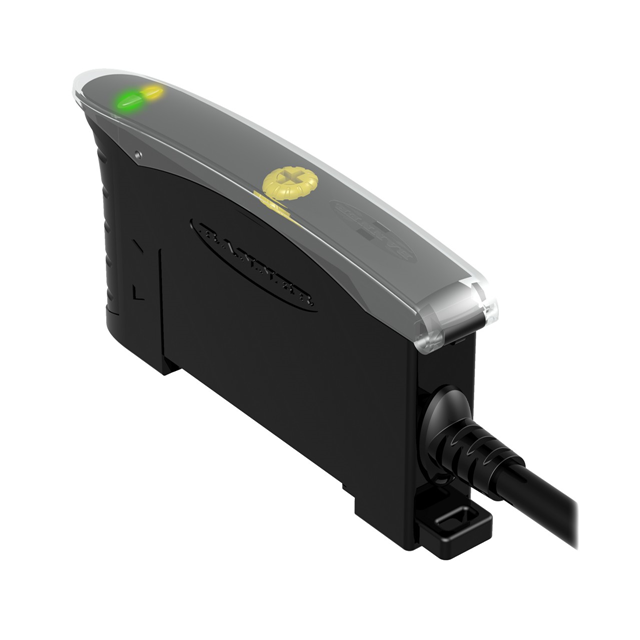

D10AFPY

Active

BANNER ENGINEERING

D10AFPY 2M CABLE 4 WIRE RED HI-SPEED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

D10AFPY 2M CABLE 4 WIRE RED HI-SPEED

Technical Specifications

Parameters and characteristics for this part

Specification	D10AFPY

Adjustment Type	Adjustable, 12-Turn Potentiometer
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 1 IEC IP50
Light Source	Red (660nm)
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP
Response Time	200 µs
Sensing Method	Fiber Optic
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Connection Method	Response Time	Cable Length	Cable Length	Sensing Method	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Ingress Protection	Output Configuration	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Adjustment Type	Operating Temperature [Max]	Operating Temperature [Min]
BANNER ENGINEERING D10AFP	Cable	500 µs	78.74 in	2 m	Fiber Optic	55 °C	-10 °C	NEMA 1 IEC IP50	NPN/PNP	LED	30 VDC	10 VDC
BANNER ENGINEERING D10AFPY	Cable	200 µs	78.74 in	2 m	Fiber Optic			NEMA 1 IEC IP50	NPN/PNP	Red (660nm)	30 VDC	10 VDC	12-Turn Potentiometer Adjustable	55 °C	-20 C
BANNER ENGINEERING D10AFPQ5	Connector M12	500 µs			Fiber Optic			IP50 IEC NEMA 1 NEMA 1 IEC IP50	NPN/PNP	Red (660nm)	30 VDC	10 VDC	12-Turn Potentiometer Adjustable	55 °C	-20 C
BANNER ENGINEERING D10AFPQ	Connector	500 µs			Fiber Optic	55 °C	-10 °C	NEMA 1 IEC IP50	NPN/PNP	LED	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 128.00
Newark	Each	1	$ 134.00

General part information

Fiber Optic Optical Sensor NPN/PNP
