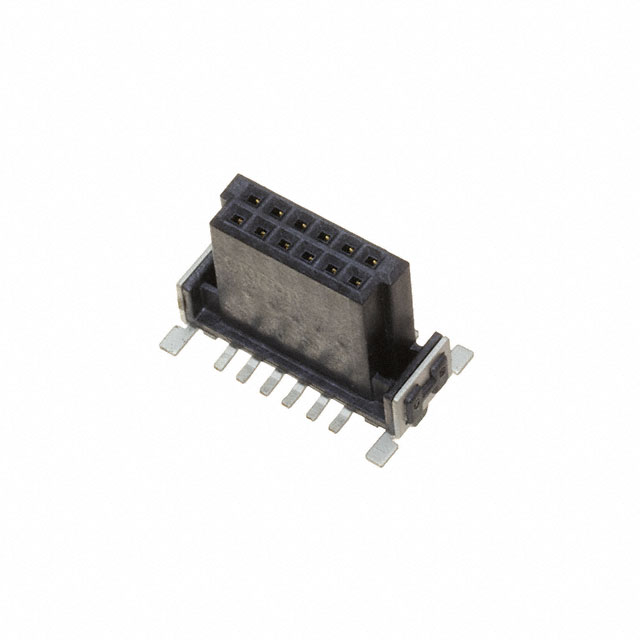

XH5B-1215-5N

Active

Omron Electronics Inc-EMC Div

SOCKET, STRAIGHT, SMT PINS

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SOCKET, STRAIGHT, SMT PINS

Technical Specifications

Parameters and characteristics for this part

Specification	XH5B-1215-5N

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height [z]	0.356 in
Insulation Height [z]	9.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	12.3 mm, 10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	100 VAC

Part	Mated Stacking Heights	Material Flammability Rating	Style	Insulation Color	Fastening Type	Number of Positions Loaded	Voltage Rating	Contact Material	Mounting Type	Features	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Post	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Termination	Contact Shape	Insulation Height [z]	Insulation Height [z]
Omron Electronics Inc-EMC Div XH5B-2615-4N	8 mm 9.5 mm	UL94 V-0	Board to Board Cable	Black	Push-Pull	All	100 VAC	Copper Alloy	Surface Mount	Board Guide Pick and Place Solder Retention	0.246 in	6.25 mm	2	Tin	26	Socket	0.05 in	1.27 mm	Gold	105 ░C	-55 °C	Female Socket	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	Square
Omron Electronics Inc-EMC Div XH5B-1215-5N	10.8 mm 12.3 mm	UL94 V-0	Board to Board Cable	Black	Push-Pull	All	100 VAC	Copper Alloy	Surface Mount	Board Guide Pick and Place Solder Retention			2	Tin	12	Socket	0.05 in	1.27 mm	Gold	105 ░C	-55 °C	Female Socket	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	Square	0.356 in	9.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Socket Connector 0.050" (1.27mm) Surface Mount Gold
