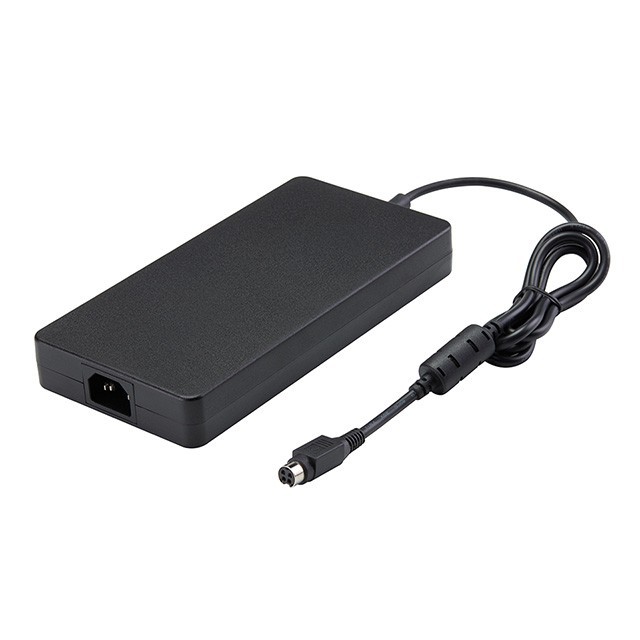

FSP330-AAAN3
ActiveFSP Technology Inc.
AC/DC DESKTOP ADAPTER 24V 330W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSP330-AAAN3
ActiveFSP Technology Inc.
AC/DC DESKTOP ADAPTER 24V 330W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP330-AAAN3 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, VCCI, CB, cULus, FCC, CCC, TUV, GS |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 13.75 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 330 W |
| Region Utilized | International |
| Size / Dimension [x] | 7.87 in |
| Size / Dimension [x] | 200 mm |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [y] | 3.94 in |
| Size / Dimension [z] | 27 mm |
| Size / Dimension [z] | 1.06 in |
| Standard Number | 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 130.00 | |
| 5 | $ 126.75 | |||
| 10 | $ 122.85 | |||
| 25 | $ 117.65 | |||
| 50 | $ 113.75 | |||
Description
General part information
FSP330 Series
24V 330 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
