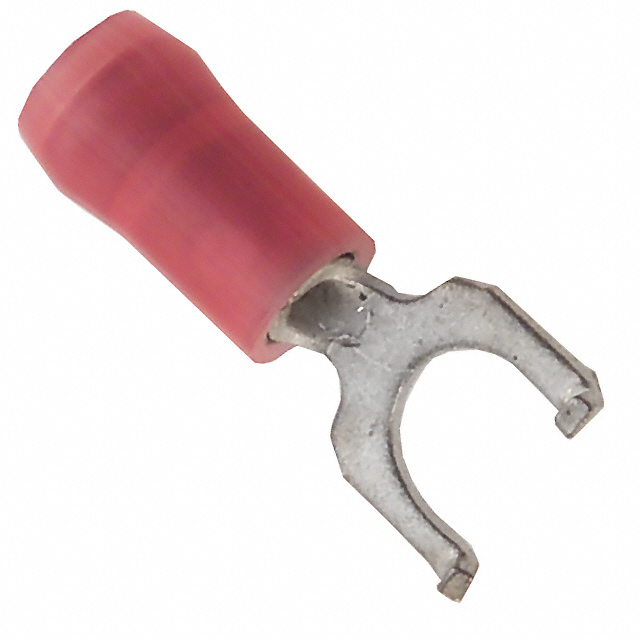

0191270012

Active

Molex

CONN SPADE TERM 18-22AWG #10 RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0191270012

Active

Molex

CONN SPADE TERM 18-22AWG #10 RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191270012

Color	Red
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	0.138 in
Insulation Diameter [diameter]	3.51 mm
Length - Overall	19.84 mm
Length - Overall	0.781 in
Length - Ring Center to Termination	5.26 mm
Length - Ring Center to Termination [x]	0.207 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening [x]	5.03 mm
Tongue Inside Opening [x]	0.198 in
Width - Outer Edges [x]	0.301 in
Width - Outer Edges [x]	7.65 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019127 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Stud/Tab Size	Contact Material	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Termination	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination	Length - Overall	Length - Overall	Terminal Type	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Length - Ring Center to Termination	Width - Outer Edges	Width - Outer Edges	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Stud/Tab Size
Molex 0191270013	22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud	Copper	Electro-Tin	0.301 in	7.65 mm	Insulated	Crimp	Red	0.138 in	3.51 mm	5.03 mm	0.198 in	0.207 in	5.26 mm	19.84 mm	0.781 in	Flanged	Nylon Polyamide (PA)
Molex 0191270041			Free Hanging (In-Line)	6 Stud	Copper	Electro-Tin	0.301 in	7.65 mm	Insulated	Crimp	Blue	0.165 "	4.19 mm	3.71 mm	0.146 in		5.31 mm			Flanged	Nylon Polyamide (PA)	20.57 mm	0.81 in	0.209 in
Molex 0191270089	12 AWG	10 AWG	Free Hanging (In-Line)	10 Stud	Copper	Electro-Tin			Insulated	Crimp	Yellow	0.225 "	5.72 mm	5.31 mm	0.209 in	0.27 in				Flanged	Nylon Polyamide (PA)	26.06 mm	1.026 in		0.385 in	9.78 mm	6.86 mm	0.56 "	14.22 mm
Molex 0191270042			Free Hanging (In-Line)		Copper	Electro-Tin	0.301 in	7.65 mm	Insulated	Crimp	Blue	0.165 "	4.19 mm	4.39 mm	0.173 in		5.31 mm			Flanged	Nylon Polyamide (PA)	20.57 mm	0.81 in	0.209 in						8 Stud
Molex 0191270012	22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud	Copper	Electro-Tin	0.301 in	7.65 mm	Insulated	Crimp	Red	0.138 in	3.51 mm	5.03 mm	0.198 in	0.207 in	5.26 mm	19.84 mm	0.781 in	Flanged	Nylon Polyamide (PA)
Molex 0191270009	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	Copper	Electro-Tin	0.301 in	7.65 mm	Insulated	Crimp	Red	0.138 in	3.51 mm	3.71 mm	0.146 in	0.207 in	5.26 mm	19.84 mm	0.781 in	Flanged	Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76
		10	$ 0.56
		25	$ 0.51
		50	$ 0.47
		100	$ 0.43
		250	$ 0.39
		500	$ 0.37
		1000	$ 0.35
		2500	$ 0.32

Description

General part information

019127 Series

Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG
