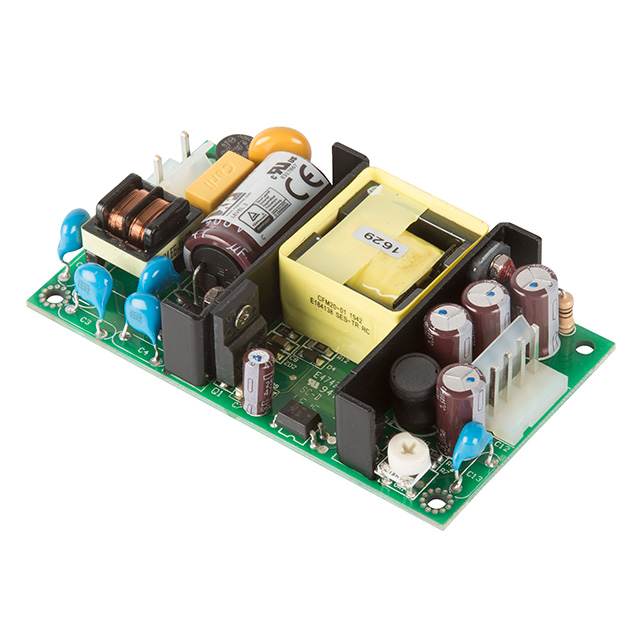

CU20-09

Obsolete

XP POWER

AC/DC CONVERTER 9V 20W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC CONVERTER 9V 20W

Technical Specifications

Parameters and characteristics for this part

Specification	CU20-09

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	4 A
Efficiency	77 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Power (Watts)	20 W
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	9 V

Part	Accessory Type	For Use With/Related Products	Power (Watts)	Number of Outputs	Type	Mounting Type	Applications	Current - Output 1	Approval Agency	Efficiency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Features	Standard Number
XP POWER CU20 LOOM KIT	Wire Harness	CU20 Series Power Supplies
XP POWER CU20-12			20 W	1	Open Frame	Chassis Mount	ITE (Commercial)	1.8 A	CE	80 %	3000 V	0 °C	65 °C	12 V	DC Input Capable Universal Input	62368-1
XP POWER CU20-14			20 W	1	Open Frame	Chassis Mount	ITE (Commercial)	920 mA	CE		3000 V	0 °C	65 °C	24 V	DC Input Capable Universal Input	62368-1
XP POWER CU20-09			20 W	1	Open Frame	Chassis Mount	ITE (Commercial)	4 A	CE	77 %	3000 V	0 °C	65 °C	9 V	DC Input Capable Universal Input	62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 9V 85 ~ 264 VAC Input
