3211-20034
ActiveAmphenol SV Microwave

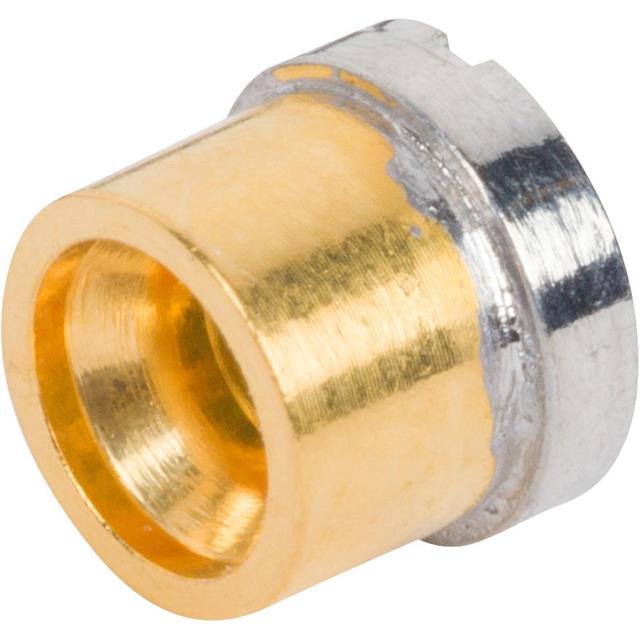

SMPM MALE PCB SURFACE MOUNT CONN
Deep-Dive with AI
Search across all available documentation for this part.
3211-20034
ActiveAmphenol SV Microwave
SMPM MALE PCB SURFACE MOUNT CONN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3211-20034 |
|---|---|
| Body Finish | Gold |
| Body Material | Steel |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Full Detent, Pre-Tinned |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 97.49 | |
| 10 | $ 89.46 | |||
| 25 | $ 86.02 | |||
| 50 | $ 83.15 | |||
| 100 | $ 78.57 | |||
Description
General part information
3211-20 Series
SMPM Connector Plug, Male Pin 50 Ohms Surface Mount Solder
