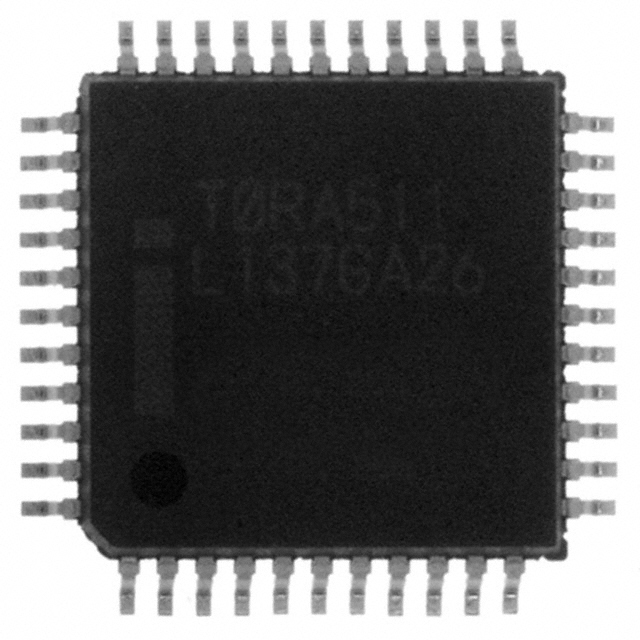

TS80C51RA1
ObsoleteAltera
IC MCU 8BIT ROMLESS 44QFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS80C51RA1
ObsoleteAltera
IC MCU 8BIT ROMLESS 44QFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS80C51RA1 |
|---|---|
| Connectivity | SIO |
| Core Processor | MCS 51 |
| Core Size | 8-Bit |
| Mounting Type | Surface Mount |
| Number of I/O | 32 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |
| Package / Case | 44-QFP |
| Peripherals | WDT |
| Program Memory Type | ROMless |
| RAM Size | 512 |
| Speed | 16 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.87 | |
Description
General part information
TS80C51 Series
MCS 51 80C Microcontroller IC 8-Bit 16MHz ROMless
