19301322275ML

Active

HARTING Technology Group

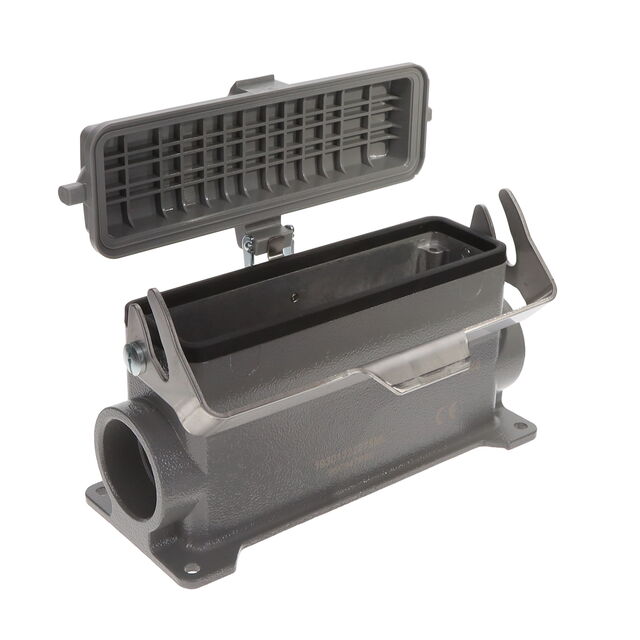

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 32B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 32B

Technical Specifications

Parameters and characteristics for this part

Specification	19301322275ML

Connector Type	Base - Box Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	L32B
Size / Dimension [x]	6.732 in
Size / Dimension [x]	171 mm
Size / Dimension [y]	71.4 mm
Size / Dimension [y]	2.811 in
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Housing Material	Housing Color	Style	Size	Ingress Protection	Housing Finish	Connector Type	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19301322275ML	6.732 in	3.181 "	80.8 mm	71.4 mm	2.811 in	171 mm	Cover	Aluminum Die Cast	Gray	Side Entry	L32B	IP65 - Dust Tight Water Resistant	Powder Coated	Base - Box Mount	Locking Clip (1) on Base Bottom	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M40 L32B IP65 - Dust Tight, Water Resistant
