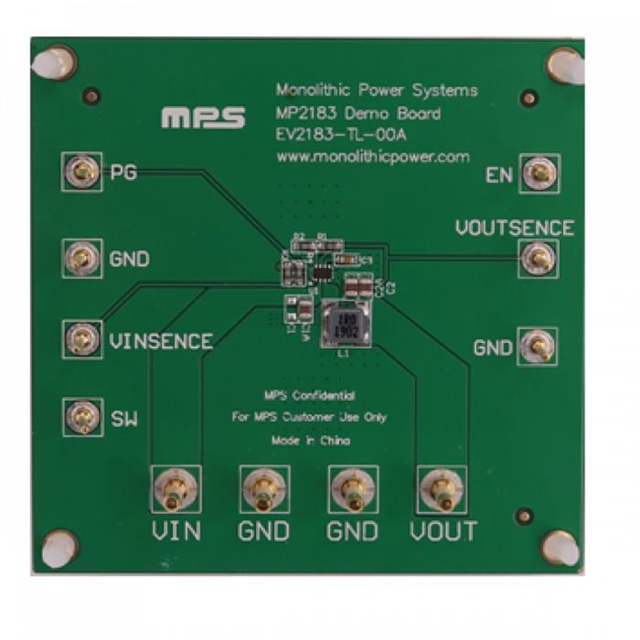

EV2183-TL-00A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
3A SYNCHRONOUS STEP-DOWN CONVERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EV2183-TL-00A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
3A SYNCHRONOUS STEP-DOWN CONVERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EV2183-TL-00A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3 A |
| Frequency - Switching | 1.2 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MP2183 |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.5 V |
| Voltage - Output | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.00 | |
Description
General part information
EV2183 Series
MP2183 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
