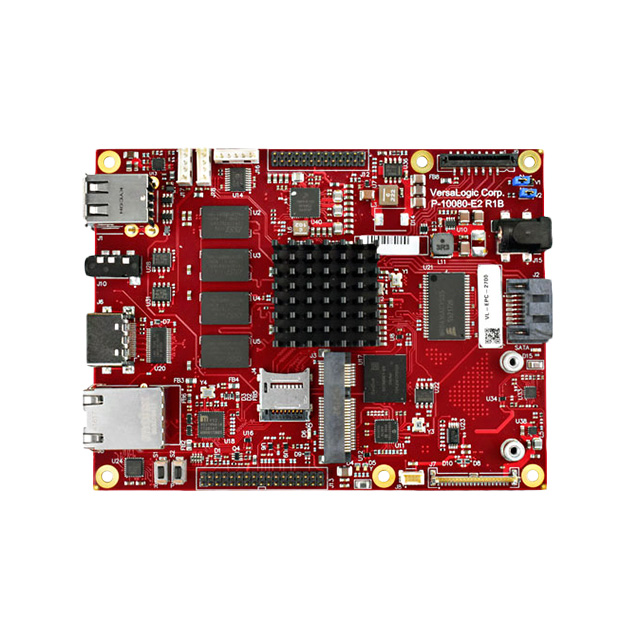

VL-EPC-2700-EDK-EVAL
VersaLogic Corporation
SBC 800MHZ 4 CORE 2GB/2GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VL-EPC-2700-EDK-EVAL
VersaLogic Corporation
SBC 800MHZ 4 CORE 2GB/2GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VL-EPC-2700-EDK-EVAL |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | i.MX6Quad, ARM Cortex-A9 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Number of Cores | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 4.1 W |
| RAM Capacity/Installed | 2 GB |
| RS-232 (422, 485) | 1 |
| Size / Dimension [x] | 93.98 mm |
| Size / Dimension [x] | 3.7 in |
| Size / Dimension [y] | 124.46 mm |
| Size / Dimension [y] | 4.9 in |
| Speed | 800 MHz |
| Storage Interface | microSD, SATA II, eMMC, MRAM |
| USB | USB 2.0 (2) |
| Video Outputs | HDMI, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 416.00 | |
Description
General part information
VL-EPC Series
Single Board Computer 800MHz 4 Core 2GB/2GB RAM ARM Cortex-A9, i.MX6Quad
