193,GY

Active

Serpac

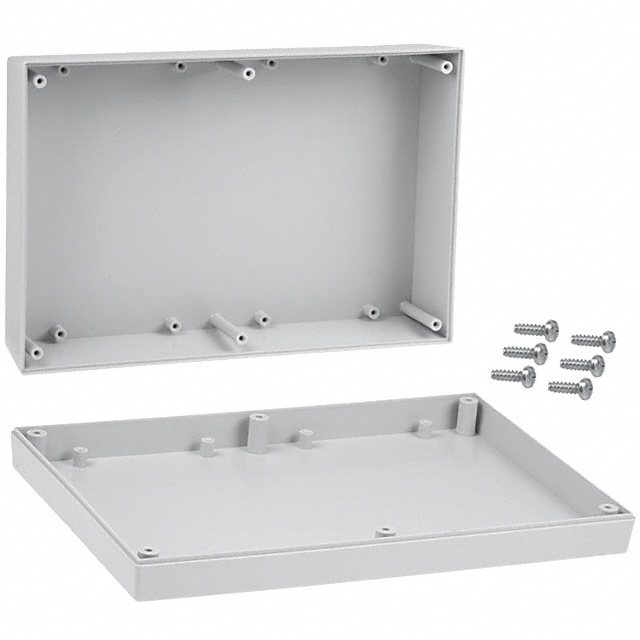

BOX ABS GRAY 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	193,GY

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.72 lb
Weight	326.59 g

Part	Material Flammability Rating	Container Type	Material	Features	Height [z]	Height [z]	Color	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Weight	Weight	Thickness	Thickness	Area (L x W)	Area (L x W)	Ratings
Serpac 193,AL	UL94 HB	Box	Plastic ABS	PCB Supports	63.5 mm	2.5 in	Almond	Hand Held Split Sides	9.5 "	6.34 "	161.04 mm 241.3 mm	0.72 lb	326.59 g	2.54 mm	0.1 in	388 cm²	60.2 in²	IP40 NEMA 1
Serpac 193,BK	UL94 HB	Box	Plastic ABS	PCB Supports	63.5 mm	2.5 in	Black	Hand Held Split Sides	9.5 "	6.34 "	161.04 mm 241.3 mm	0.72 lb	326.59 g	2.54 mm	0.1 in	388 cm²	60.2 in²	IP40 NEMA 1
Serpac 193,GY	UL94 HB	Box	Plastic ABS	PCB Supports	63.5 mm	2.5 in	Gray	Hand Held Split Sides	9.5 "	6.34 "	161.04 mm 241.3 mm	0.72 lb	326.59 g	2.54 mm	0.1 in	388 cm²	60.2 in²	IP40 NEMA 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.23

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.500" (63.50mm)
