Technical Specifications
Parameters and characteristics for this part
| Specification | X0115MUF |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 150 µA |
| Current - Hold (Ih) (Max) [Max] | 5 mA |
| Current - Off State (Max) [Max] | 1 µA |
| Current - On State (It (AV)) (Max) [Max] | 640 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SMB, Flat Leads |
| SCR Type | Sensitive Gate |
| Supplier Device Package | SMBflat-3L |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 800 mV |
| Voltage - Off State | 600 V |
| Voltage - On State (Vtm) (Max) [Max] | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| 2000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| 2000 | $ 0.14 | |||
| Tape & Reel (TR) | 5000 | $ 0.15 | ||
| 10000 | $ 0.13 | |||
| 15000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
| 35000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information

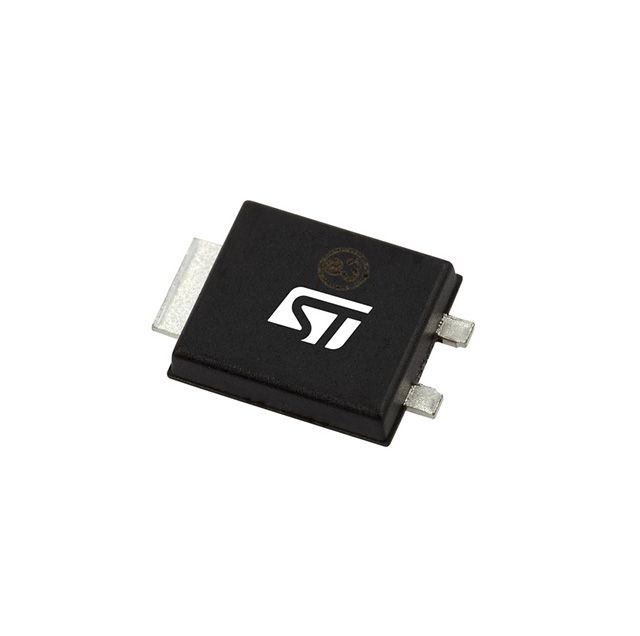

X0115MUF Series
Thanks to highly sensitive triggering levels, the 1 A X0115MUF SCR thyristor is suitable for all applications where available gate current is limited. The X0115MUF offers a high blocking voltage of 600 V, and a surge peak voltage of 750 V, ideal for applications like ground fault circuit interrupter (GFCI) and arc fault circuit interrupters (AFCI).
The surface mount SMBflat-3L package allows modern, compact, SMD based designs for automated manufacturing. Its 3.4 mm creepage distance guarantees a 250 V functional isolation (UL 840) at a level 2 pollution degree.
