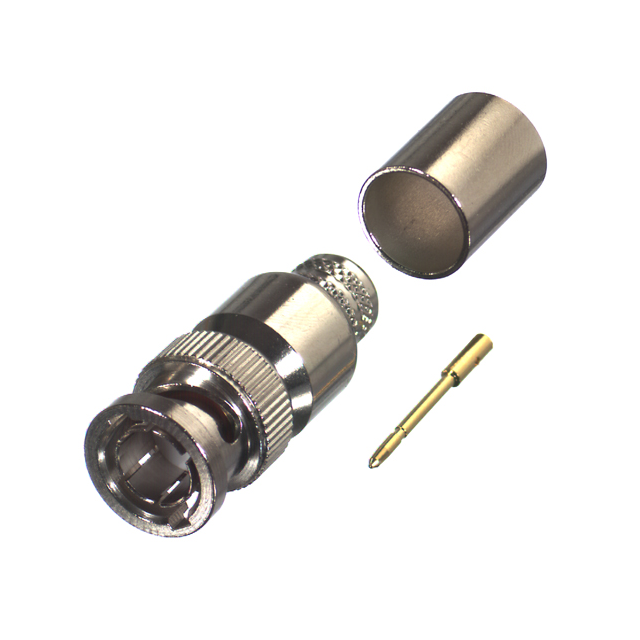

RFB-1707-R1

Active

RF Industries

BNC MALE CRIMP; 75 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC MALE CRIMP; 75 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1707-R1

Body Finish	Nickel
Body Material	Brass
Cable Group	8261, 9212, RG-11, Belden 8238
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Material	Frequency - Max [Max]	Fastening Type	Impedance	Center Contact Plating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shield Termination	Connector Style	Center Contact Material	Housing Color	Cable Group	Connector Type	Body Finish	Voltage Rating	Number of Ports	Mounting Type
RF Industries RFB-1707-R1	Brass	3 GHz	Bayonet Lock	75 Ohms	Gold	Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Crimp	BNC	Brass	Silver	8261 9212 Belden 8238 RG-11	Male Pin Plug	Nickel	500 V	1	Free Hanging (In-Line)
RF Industries RFB-1707-G	Brass	4 GHz	Bayonet Lock	50 Ohms	Gold	Crimp	-65 ░C	85 °C	Polyoxymethylene (POM) Acetal	Crimp	BNC	Brass	Silver	8281B 8281F 9231 Belden 8281	Male Pin Plug	Nickel	500 V	1	Free Hanging (In-Line)
RF Industries RFB-1707-2D	Brass	4 GHz	Bayonet Lock	75 Ohms	Gold	Crimp	-65 ░C	85 °C	Polytetrafluoroethylene (PTFE)	Crimp	BNC	Brass	Silver		Male Pin Plug	Silver	500 V	1	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
